CARACTERISTICI PRINCIPALE

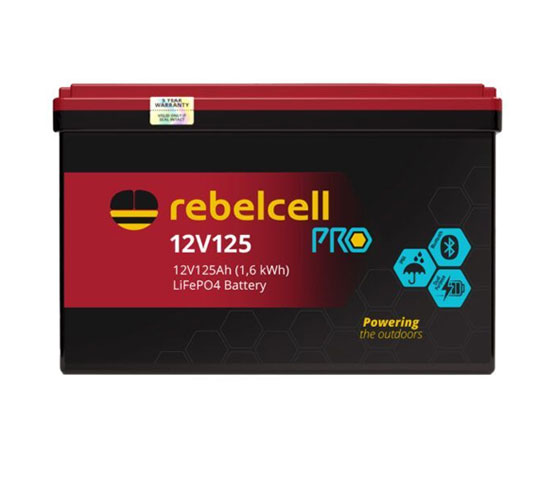

All-in-one LiFePO₄ battery: functions as outboard starter, 12V power source for trolling motors and depth sounders, service battery for boats and campervans, and mover battery for caravans.
Compact & lightweight: the battery weighs just 13.3 kg, is up to 70% smaller than an equivalent lead-battery, and fits in nearly all boat compartments.
Frost Control: pre-heating of cells allows charging in subzero temperatures.
App: to view charge status, current, estimated runtime, charge cycles, temperature, battery health.
- Emergency activation: you can restart your engine even if the battery has fully discharged by pressing the emergency activation button.
Easy to use: charges directly via alternator or standard charger, works with all 12V trolling motors and depth sounders, and meets Mercury Marine® 2022 lithium starter battery requirements. - Reliable and long life: Integrated BMS safeguards against misuse, with IP66-rated housing, a breather valve to prevent overpressure and condensation, and an always-on design to keep essential functions like bilge pumps running at all times.
Warranty: five years.
INFORMAȚII IMPORTANTE
PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER
- Charging: only charge with a recommended lithium (LiFePO₄) charger with CC/CV charging profile and 14.6V / max. 50A output, or directly via alternator up to 150A. Maximum alternator charge current: 165A (60 seconds).
- Connections: always tighten battery bolts securely with a socket wrench. Loose terminals can cause heat buildup and irreversible damage to your outboard, 12V equipment, or battery.
- Fuse protection: always install a suitable fuse between the battery and your equipment to protect both.
- Waterproofing: the battery is IP66-rated (protected against rain and spray). To prevent issues, place the battery in a waterproof container and/or on an elevated surface so it is never partly or fully submerged in water at the bottom of your boat.
DETALII ȘI SPECIFICAȚII
TECHNICAL SPECIFICATIONS
| Chemistry | LiFePO4 |
| Voltage nominal | 12.8V |
| Capacity (C1-C20) | 125Ah |
| Reserve capacity (RC25 @ 26.7 °C) | 300 min |
| EqPb (comparable lead battery) | Up to 12V210 Ah |
| Self discharge | 2–4% per month |
| Nominal energy | 1.6 kWh |
| Energy density | 115 Wh/kg |
| Maximum continuous discharge | 200A |
| Peak discharge / starter current (2s) | 1200A @ 15°C 900A @ -7°C 500A @ -20°C |
| Lifetime (#charges) (@ 80% DoD) | 7500 |
| Lifetime (#charges) (@ 100% DoD) | 5000 |
| Dimensions (in mm) | 327 x 173 x 225 |
| Weight | 13.3 kg |
| Weight package | 14.0 kg |
| Battery terminals | M8 |
| Suitable chargers | 14.6V 20A LiFePO4 charger (normal or waterproof): 6–7 h. 14.6V 35A LiFePO4 charger waterproof: 4–5 h. |
ELECTRONICS & BMS
| Bandwidth voltage | 10.0V – 14.6V |
| Charge temperature | -20°C – 45°C |
| Discharge temperature | -20°C – 60°C |
| Storage temperature | 0°C – 45°C |
| Charging profile | CC/CV |
| Charging voltage | 14.6V ± 0.2V |
| Charging via alternator | Yes, (max alternator size 150A) |
| Maximum charging current | 50A (charger) 165A (up to 60 sec – alternator) |
| Parallel connection | Yes, up to 4P |
| Series connection | Yes, 2S |
| State of charge indicator | Yes, via Rebelcell BT app |
| Emergency activation button | Yes |
| Breather valve | Yes |
| Cell balancing | Yes |
| High temperature protection | Yes |
| Low temperature protection | Yes |
| Frost control | Yes |
| Maximum discharge current protection | Yes |
| Overvoltage protection | Yes |
| Undervoltage protection | Yes |
| Reverse polarity protection | Yes |
| Short circuit protection | Yes |
| Bluetooth app | Yes, for charge status, current, estimated runtime, temperature, cycle life. |
PROTECTION & CERTIFICATION
| Security class (IEC 529) | IP66 |
| Certification | CE, MSDS, RohS, UN38.3 |
| Shipping classification | UN3480, lithium-ion batteries, class 9 |
| Warranty | 5 years |
| Barcode | 8720964631523 |
| EAN | 8720964631523 |
| Product code | 12125RELIBTA |
| HS code (International / EU) | 850760 / 85076000 |
| ADR | Yes, UN3480 |
