Boat Catalog

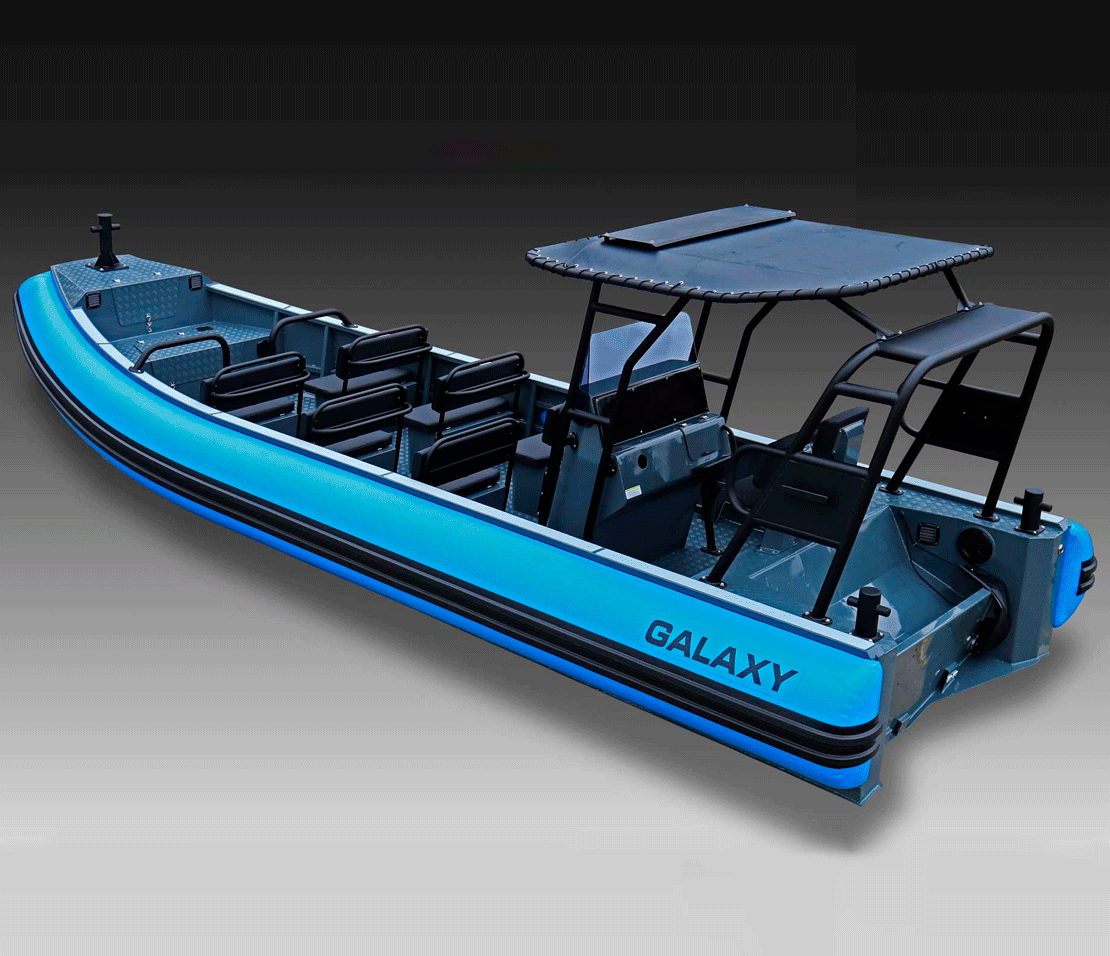

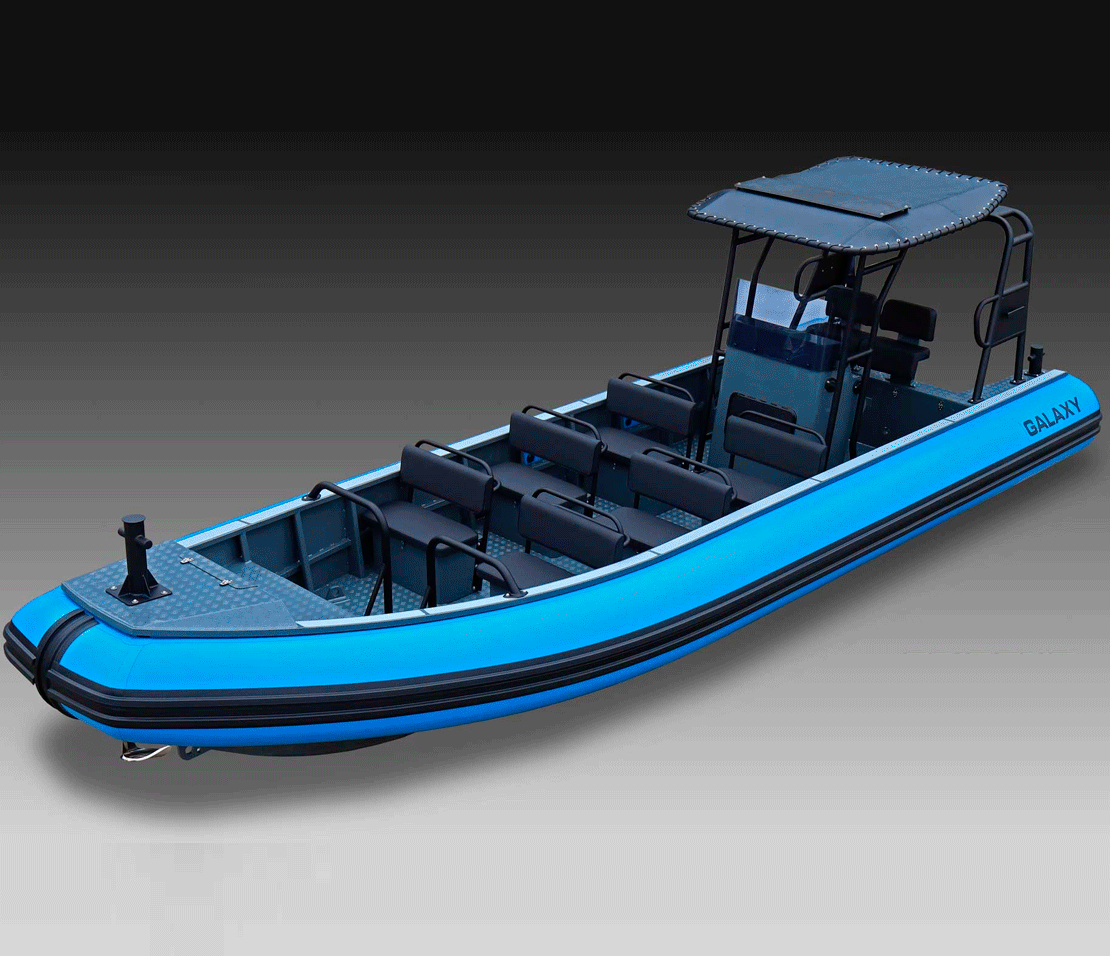

GALAXY TRIDENT T8

DESCRIPTION OF THE BOAT

     TRIDENT T8 stands out as one of GALAXY’s most iconic and cutting-edge boats. Engineered to excel in the most demanding environments, it is perfect for law enforcement, patrol missions, and military and commercial applications. The boat features a robust aluminum welded hull with a revolutionary D-shaped tube (D-tube) and built-in flotation, providing unmatched strength and stability. The D-TUBE concept offers a unique advantage with significantly increased cockpit space and durability compared to traditional O-shaped inflatable tubes.

Customize your TRIDENT T8 with your choice of collar options:

  • Solid close-cell foam D-shaped collar with HYPALON / TPU (Polyurethane) protective skin and inflatable compensation/tension bladder
  • Fully inflatable D-shaped HYPALON / TPU (Polyurethane) collar with 5 chambers.


We offer an extensive selection of deck equipment, including steering consoles, seating arrangements, arches, T-tops, roofs, engine guards, bollards, ammunition lockers, and more. This ensures that every TRIDENT T8 can be tailored to perfectly fit your specific mission needs, providing a boat that is truly built for your requirements.



BEST FOR:



TRIDENT – T8

Police / Law Enforcement. Collar: Coated Foam Collar

TRIDENT – T8

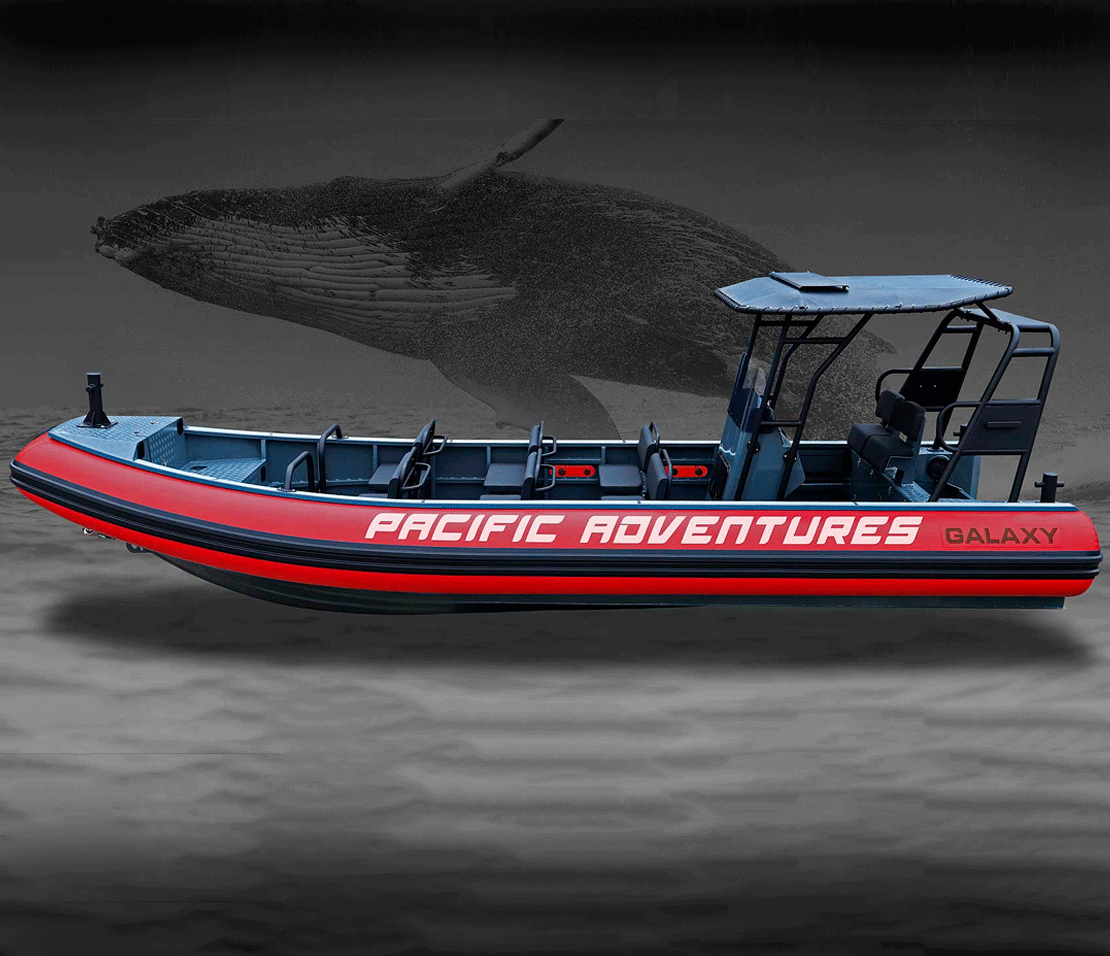

Whale Watching. Collar: Inflatable.

TRIDENT – T8

Transporter / Operation. Collar: Coated Foam Collar

TRIDENT – T8

Long Range Law Enforcements / Patrol. Collar: Coated Foam Collar.

TRIDENT – T8

Oil platform crew transporter. Collar: Coated Foam Collar.



5 REASONS TO CHOOSE GALAXY

TRUE PRO GRADE DESIGN

GALAXY is TRUE COMMERCIAL GRADE DESIGN with solid industrial naval engineering and highest PRO-grade parts and materials.

FAST PRODUCTION & DELIVERY

We offer extremely quick order processing, short production time and fast delivery! No long waiting! WE DELIVER!

100% CUSTOMIZED

We have a number of base boats with huge amount of optional equipment to choose from.

VARIETY OF DECK EQUIPMENT

GALAXY has an impressive range of different deck equipment (consoles, seating, tubing, arches and much more). We have what you need!

3-D VISUALIZATION

We make 3D CAD boat visualization for every customer. So you can be sure that your boat will be exactly what you want!



FEATURES

STANDARD FEATURES:
  • Deep-V, powder-coated aluminum hull with SELF-BAILING cockpit
  • Two large quick drains – bailers
  • Single engine or double engine motor well

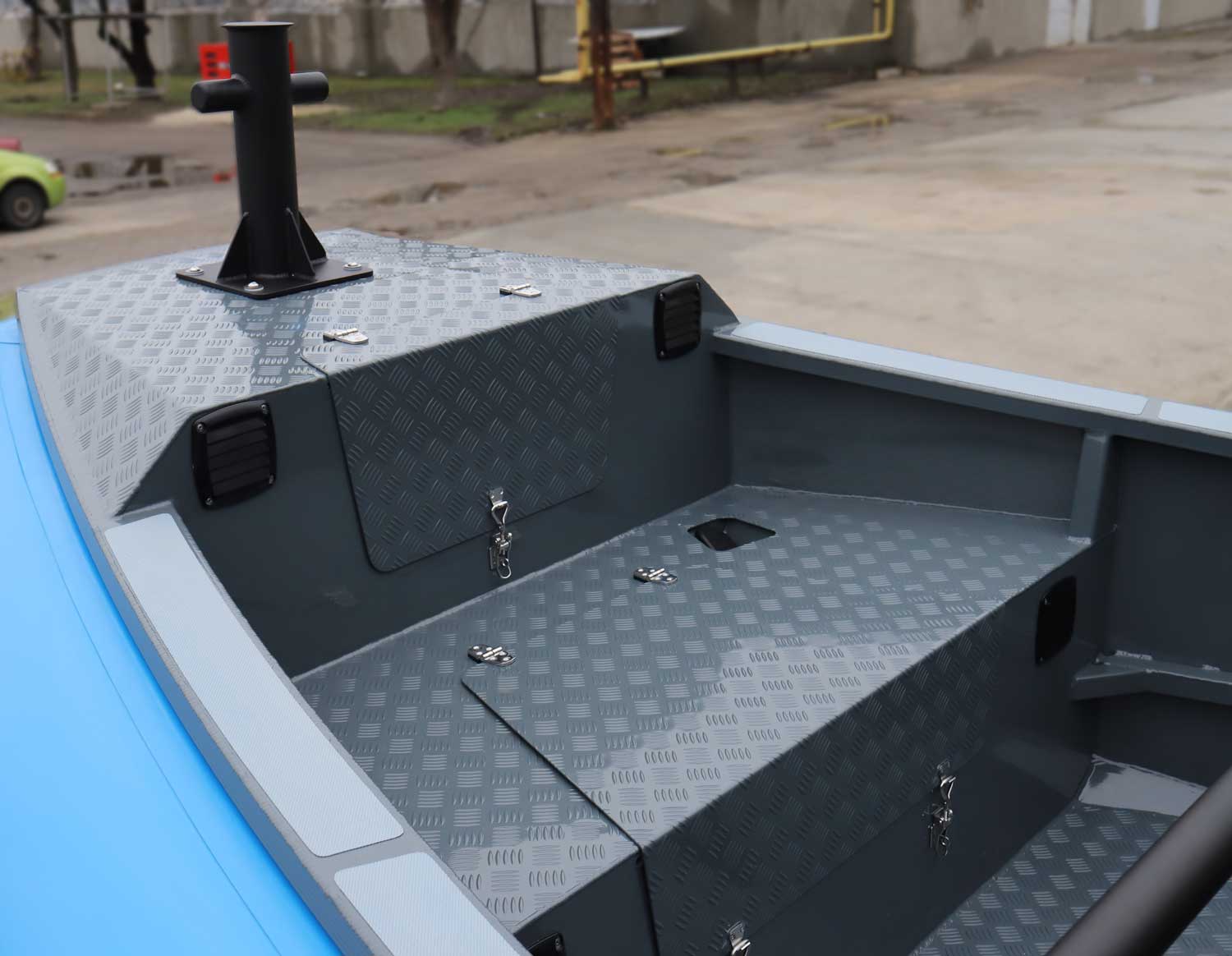

  • Bow locker and anchor locker
  • Embossed PRO decking
  • 4 mooring cleats, 4 lifting eyes, 2 rear and 1 bow tow eyes

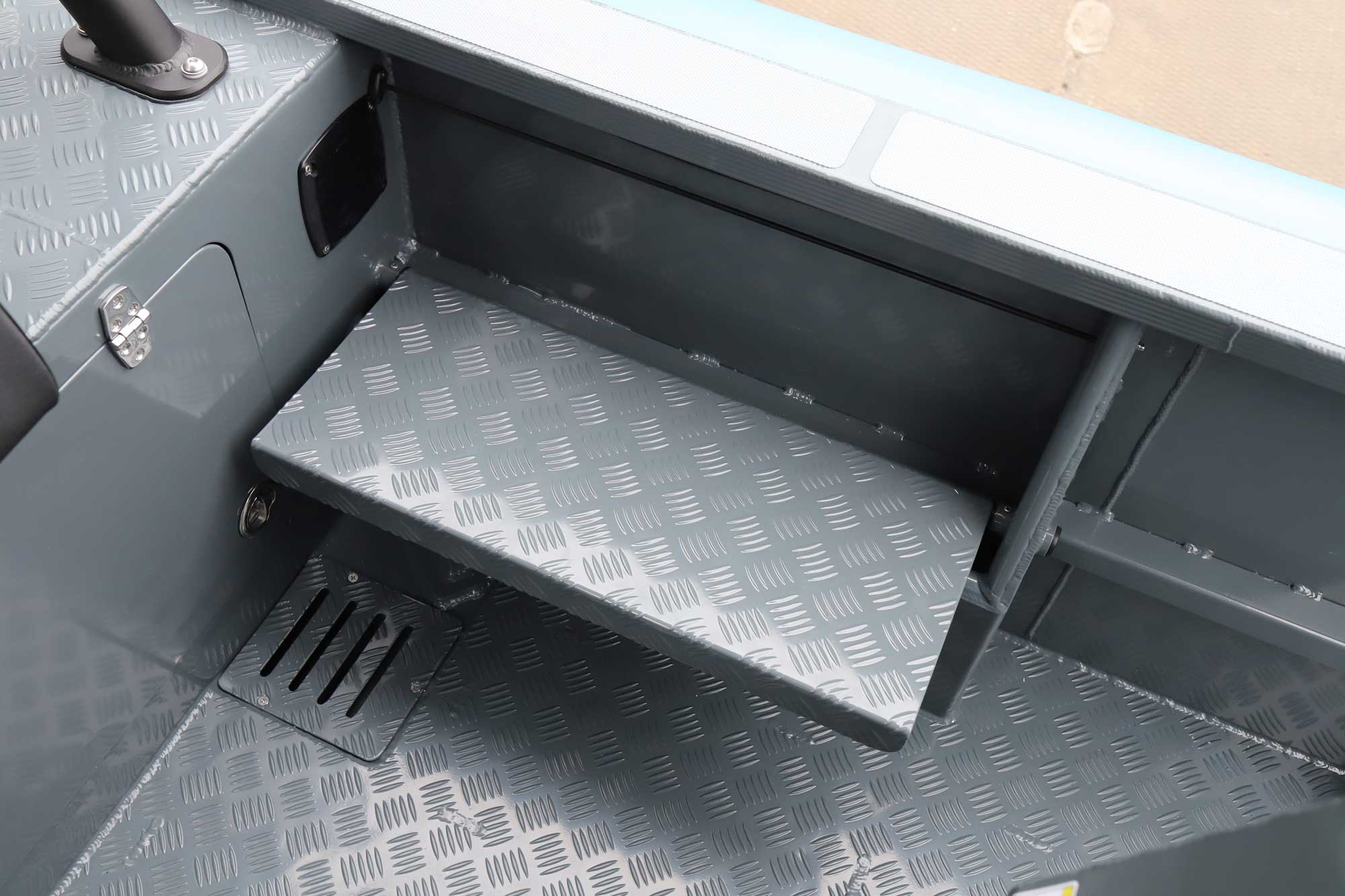

  • Folding step boards and storage compartments
  • Service package: paddles, repair kit, manual


BOAT COLLAR OPTIONS:

  • HYPALON coated solid foam float with inflatable tension bladder
  • TPU (Polyurethane) coated solid foam float with inflatable tension bladder
  • HYPALON fully inflatable tube with 5 chambers
  • TPU (Polyurethane) fully inflatable tube with 5 chambers

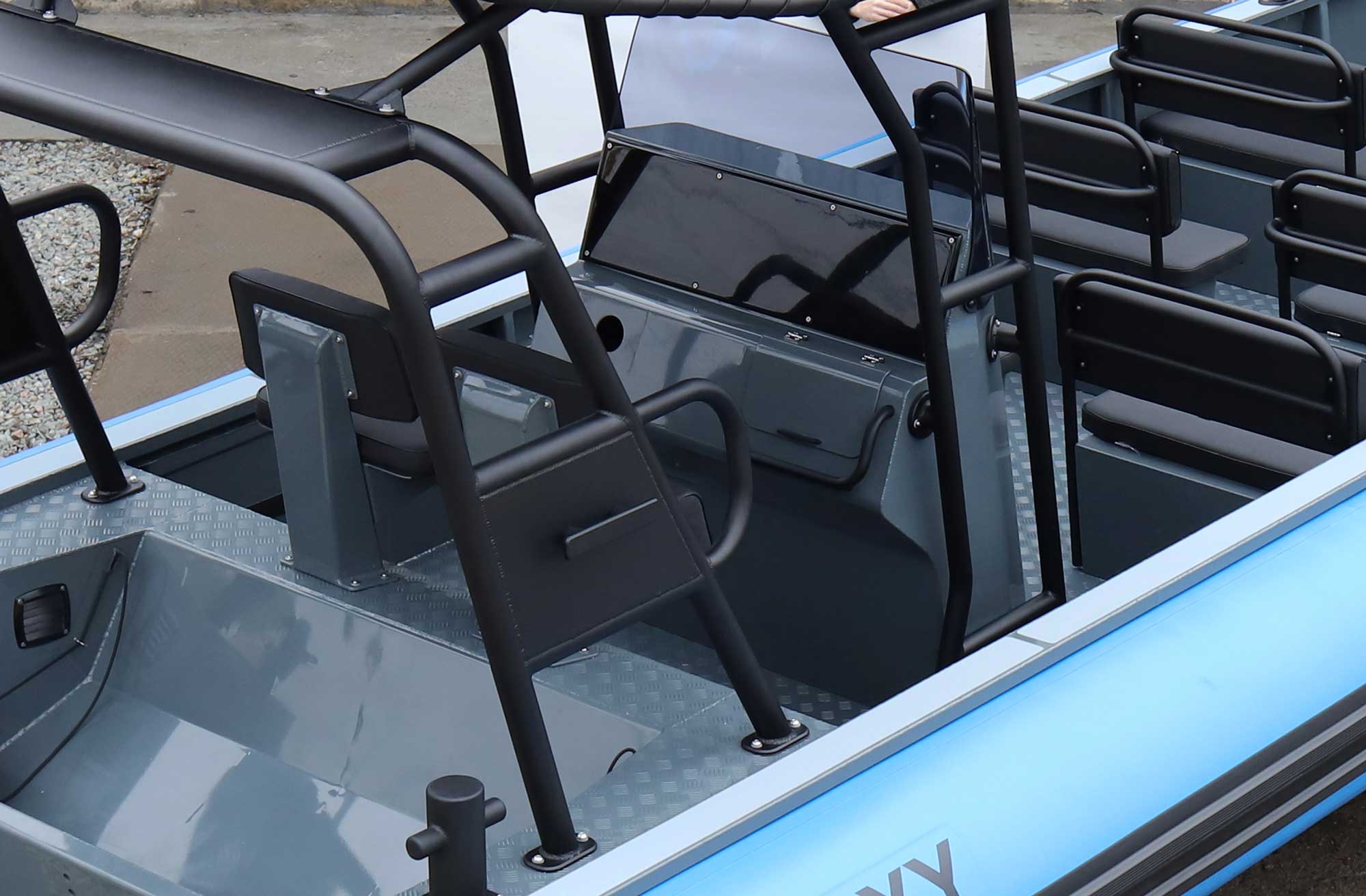

STEERING CONSOLES:

  • Steering console C-08 with windshield and railing (Default)
  • Steering console C-08.1 without windshield and railing, aluminum
  • Steering console C-20, aluminum
  • Steering console C-24 with front seat


SEATING:

  • Driver’s bolster seat S-09 (Default)
  • Bolster seat S11, motor well mount with back rest
  • PRO jockey seat S10 with storage and seat back
  • PRO jockey seat S10 without front handrail, with storage and seat back
  • Driver’s bolster seat S-20
  • Driver’s bolster seat S-18
  • Driver’s seat S-03PM
  • Driver’s seat S-25

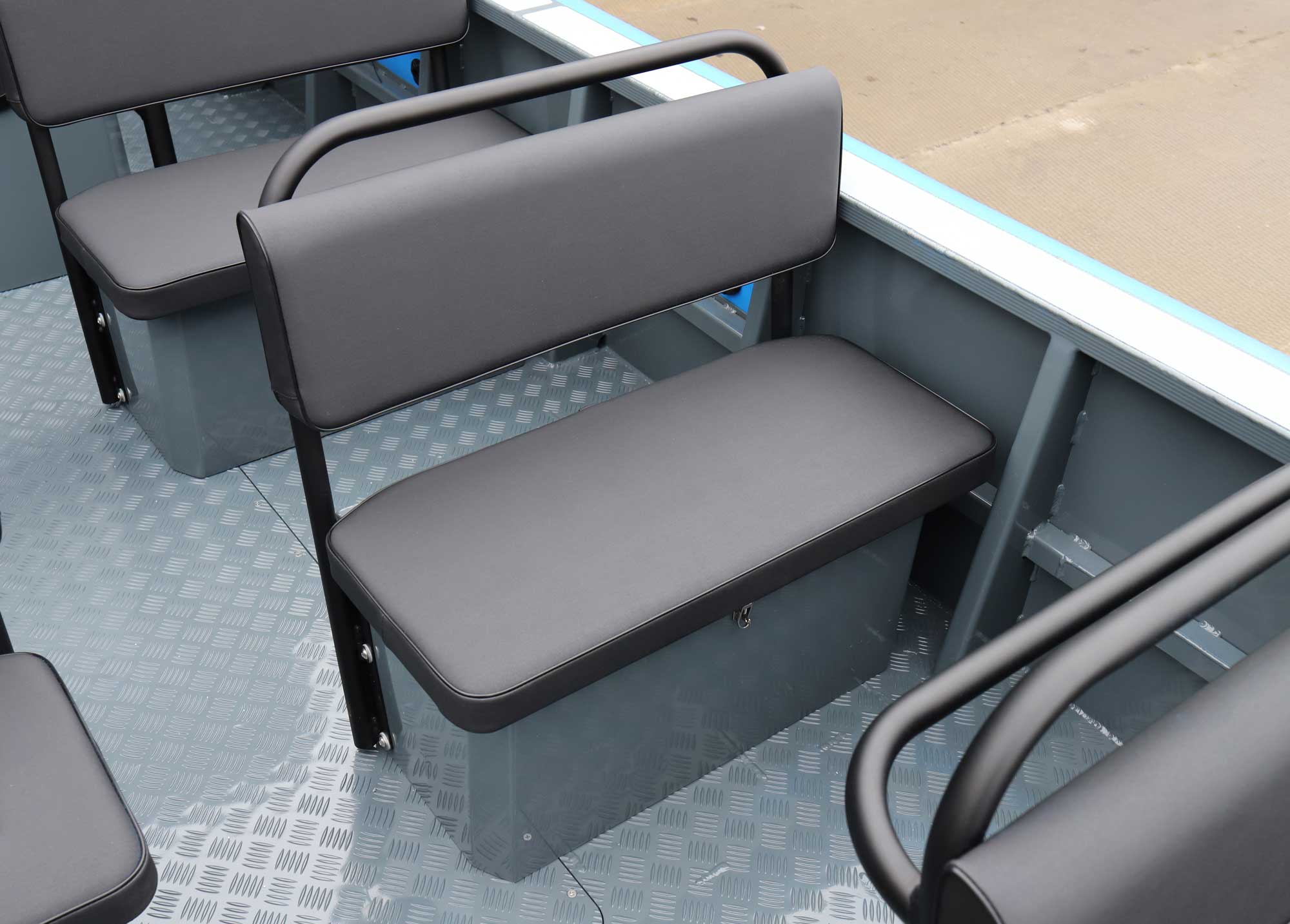

  • Passenger double-sided seat S14, four
  • Double-side seat S15
  • Folding cockpit seats, eight
OPTIONAL EQUIPMENT:
  • Steering wheel
  • Hydraulic steering system
  • Electric equipment package
  • Built-in fuel system with 200L tank and sender
  • Fuel gauge
  • Anchor set
  • Extra 200L tank for 400L total fuel reserve
  • PATROL roof with windshield and safety bars
  • Engine guard frame for single or twin engines
  • Steering console tower with mounting plate
  • Heavy-duty bow bollard and two rear bollards
  • Towing arch with 2 cleats & tow eye
  • T-top with wide equipment mounting plate
  • Compact aluminum side panels  with antiskid decking, two
  • Diving bottle storage rack for 4 bottles
  • Diving bottle storage rack for 6 bottles
  • Diving bottle storage rack for 12 bottles with seating
  • Diving bottle storage rack for 24 bottles with seating
  • Diving ladder with deck mounts
  • Bow locker soft cushion
  • Bow seat back cushion
  • Overall cover, console/seat covers
  • Custom lettering on T-top
  • Customer lettering on both sides of inflatable tube



TUBE AND DECOR COLORS

BLACK

Black tube with gray decor. Dark gray hull.

RED

Red HYPALON tube with black decor. Dark gray hull.

ORANGE

Orange TPU / HYPALON tube with black decor. Dark gray hull.

CUSTOM COLOR

Some other colors for tube, tube decor and hull can be available on request. Check out availability with your Dealer.



Request

Specification
Hull length 7.80 cm
Beam 2.85 cm
Hull materialAluminium alloy +PVC/Hypalon/TPU
Hull thickness 6 mm
Boat weight1600 kg
Max weight capacity2000 kg
Engine 500 HP
Persons14
