GAIN A PANORAMIC PERSPECTIVE.
SLEEK MODERN DESIGN

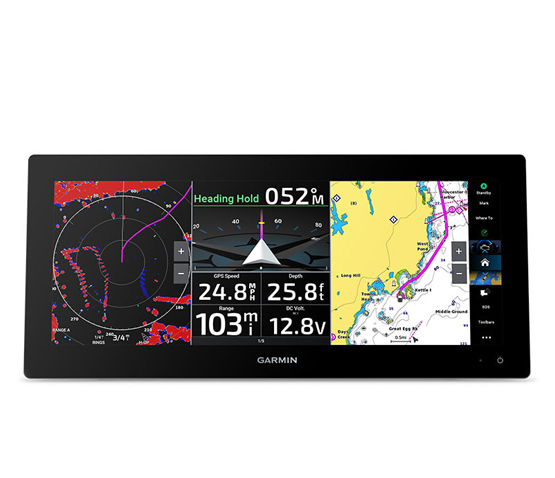

Offering a stunning display, with minimal trim borders and edge-to-edge glass, the GPSMAP 15x3 chartplotter features an ultrawide, high-resolution touchscreen interface with the familiar, easy-to-use functionality of our existing GPSMAP x3 series chartplotters.
BRIGHT AND CLEAR OPTICS
This versatile chartplotter’s ultrawide IPS display provides wider viewing angles, accurate colors, superior clarity and sunlight readability — even with polarized sunglasses.

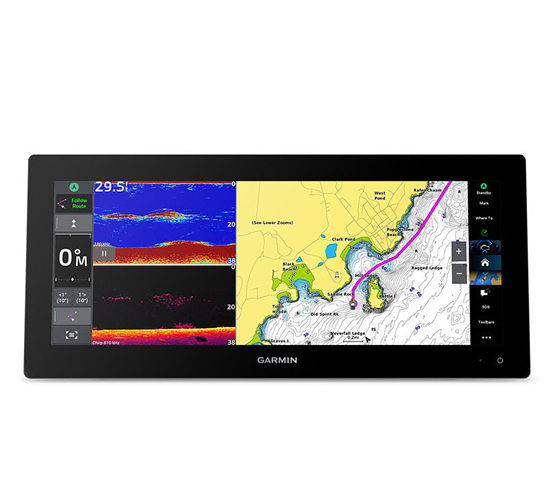

SPLIT TO FIT

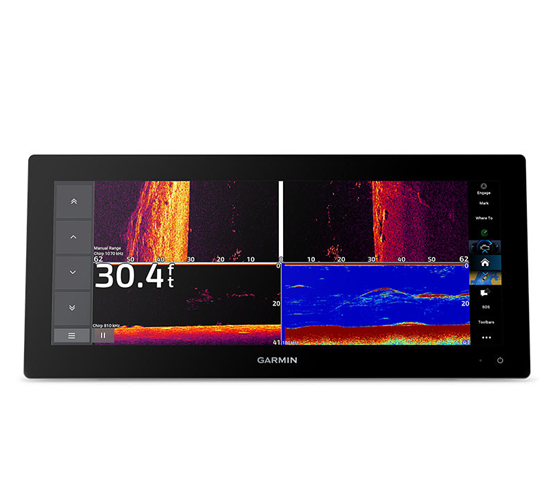

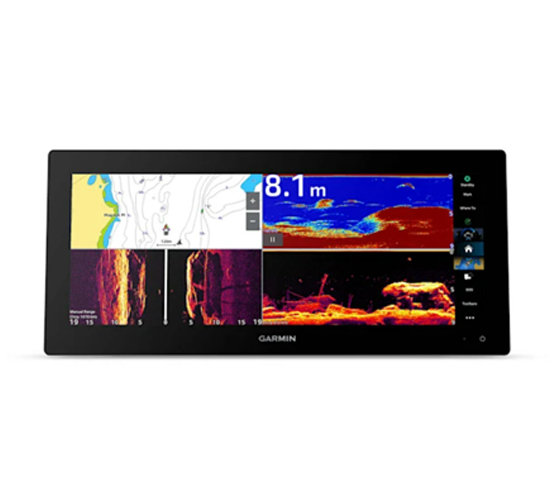

Experience the benefits of dual screens with the convenience of seamless control. Split-screen functionality lets you size and organize your display configuration to put the data you need right where you want it.

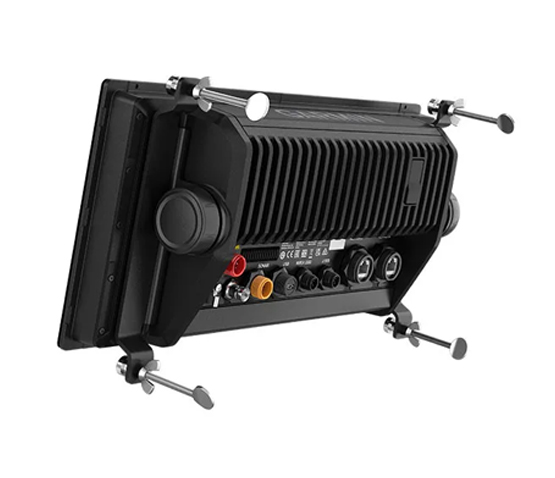

TWO MOUNTING OPTIONS

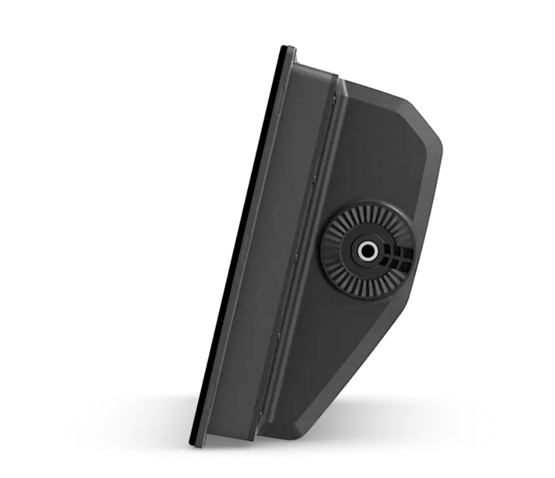

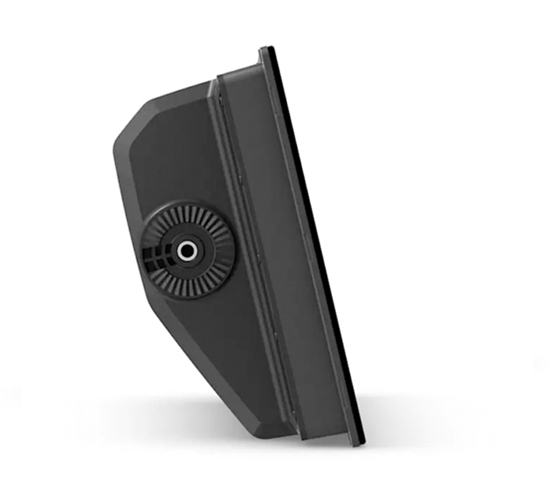

A bail-mount option with inset knobs and a bracket supports unique “floating display” installations, while a rear-mount option is provided for secure flush- and flat-mount helm solutions.
SEE THE WORLD BELOW.

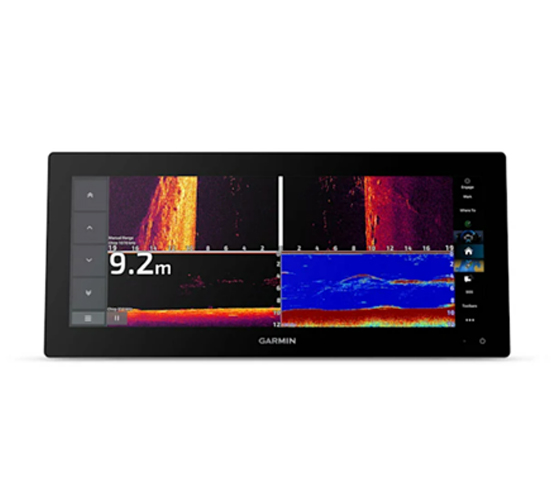

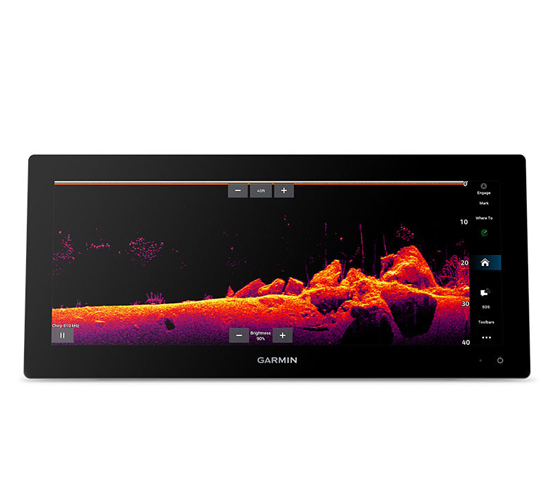

TRADITIONAL AND SCANNING SONAR SUPPORT

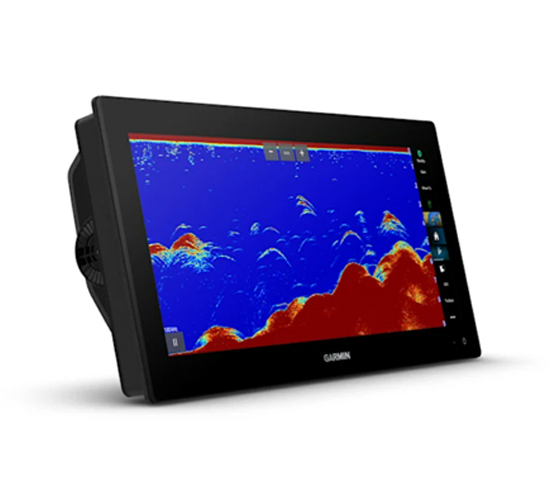

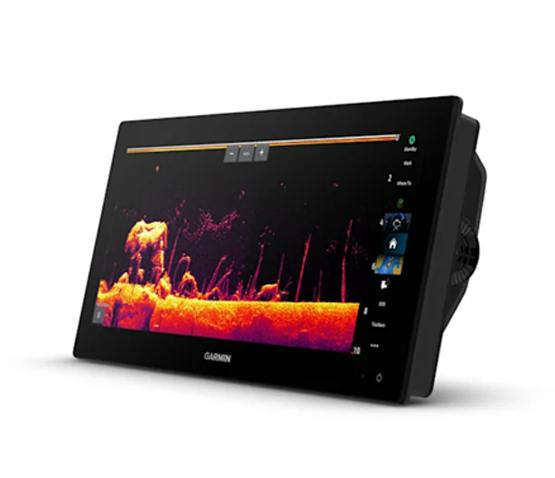

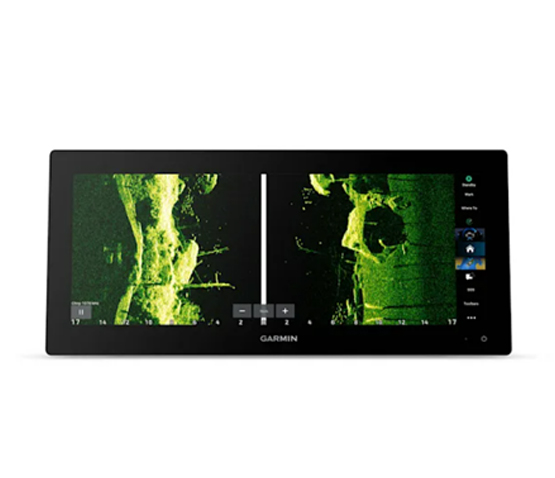

Get built-in support for 1 kW CHIRP traditional sonar for superior target separation. Plus, Ultra High-Definition ClearVü™ and SideVü™ scanning sonars feature vivid, high-contrast color palettes to help distinguish fish from structure (transducer required; sold separately).

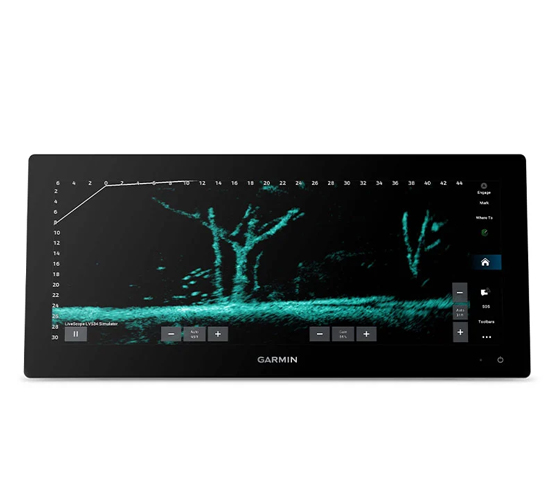

LIVE SONAR SUPPORT

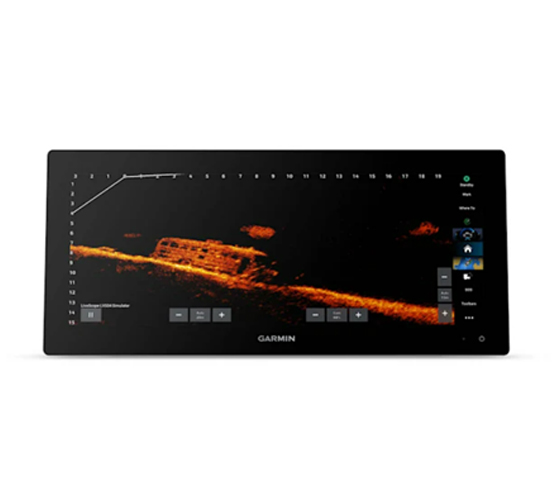

Pair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required; sold separately) to see all around your boat in real time.
MADE FOR YOUR HELM.

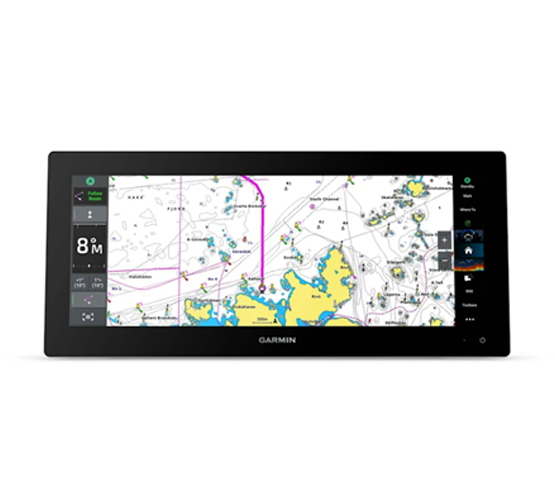

PRELOADED MAPPING

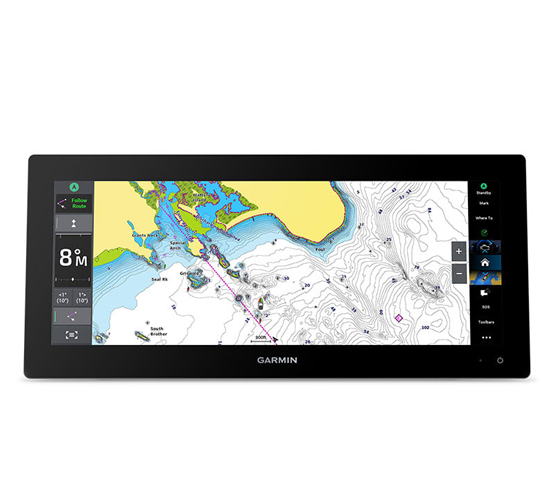

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+™ technology2 and a 1-year subscription for downloadable daily updates and more on select models.

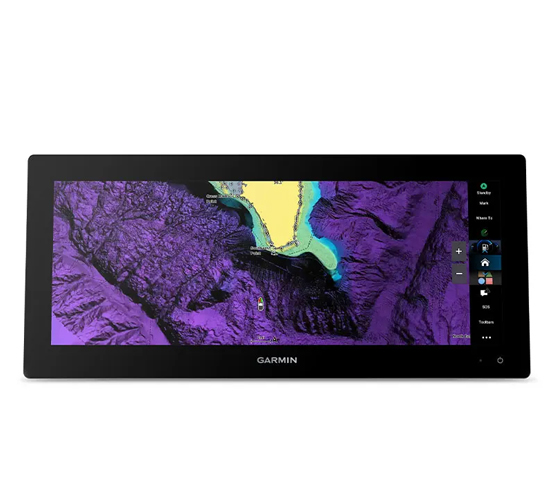

OPTIONAL CHARTS AND MAPS
Bring premium chart features to your chartplotter with an optional upgrade to a Garmin Navionics Vision+™ subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.
SAIL AND NAVIGATE WITH EASE.

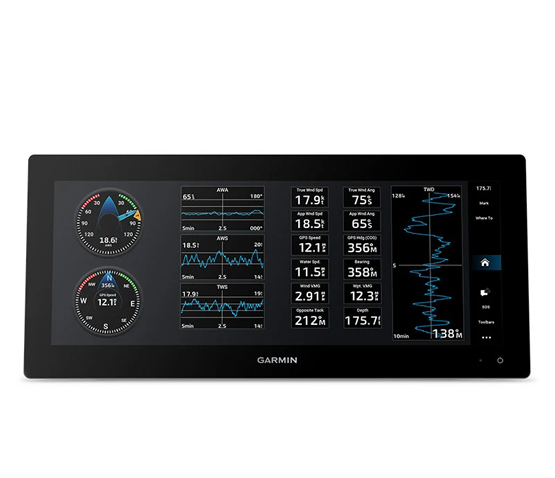

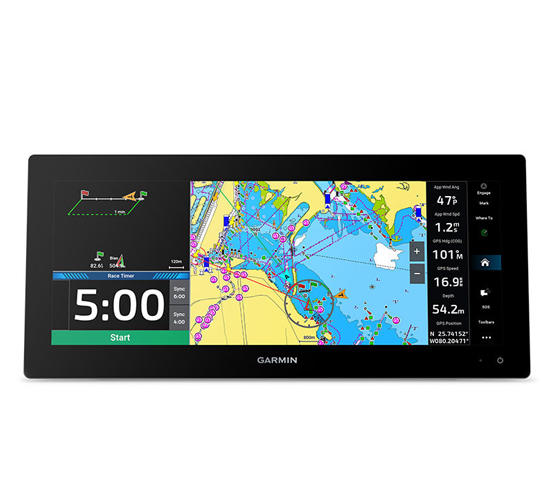

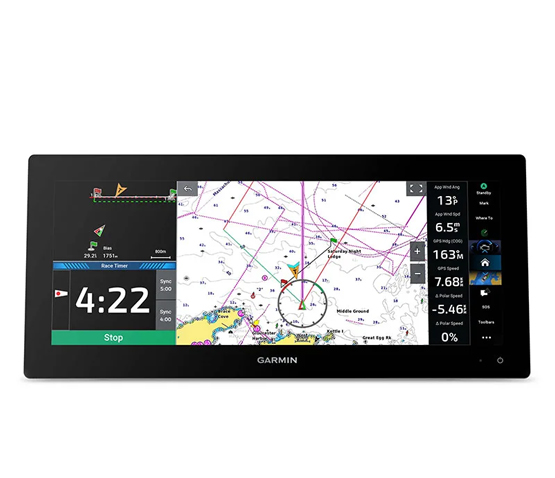

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.
SAILING POLARS
Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.
GARMIN MARINE NETWORK

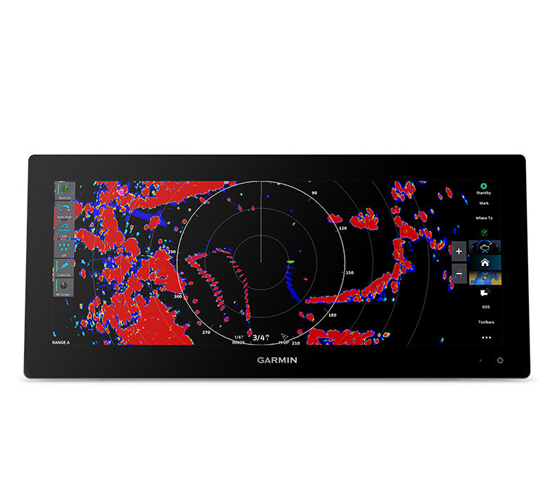

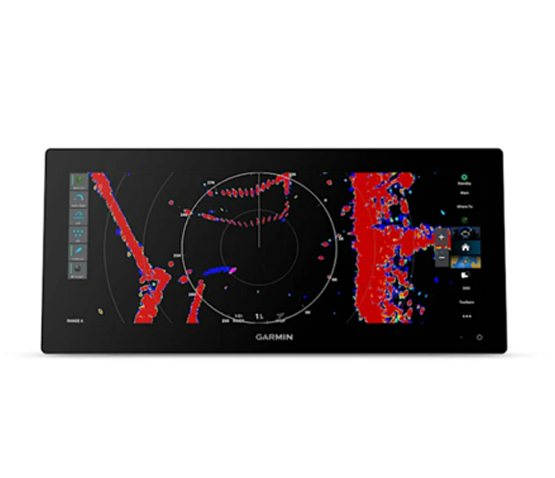

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
NMEA 2000® AND NMEA 0183 NETWORKS

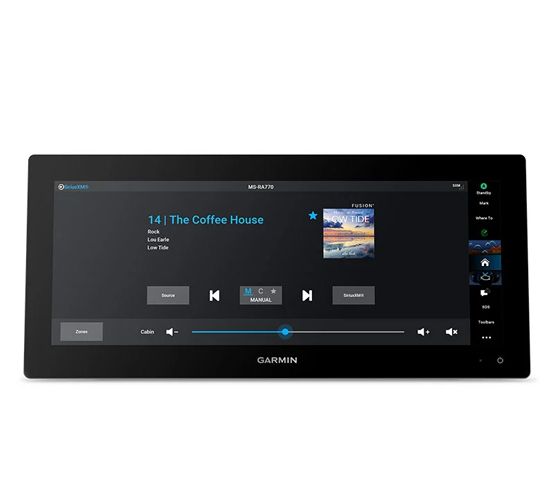

Connect to compatible autopilots, digital switching, weather, the Fusion® audio system, media, VHF, AIS and more from one screen.

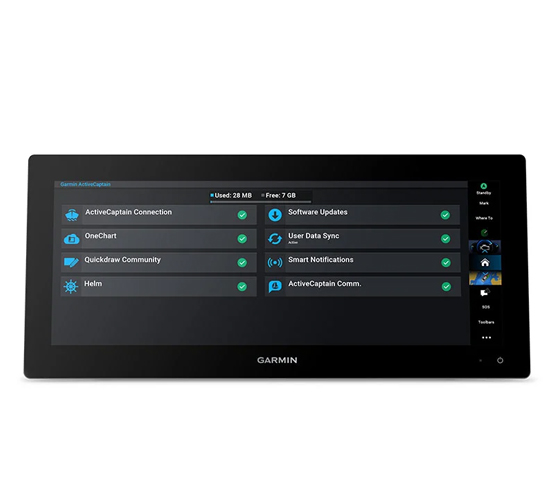

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications (when paired with your smartphone), software updates, Helm™ app, Garmin Quickdraw™ Community data and more1.
INTEGRATED ANT® TECHNOLOGY
Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

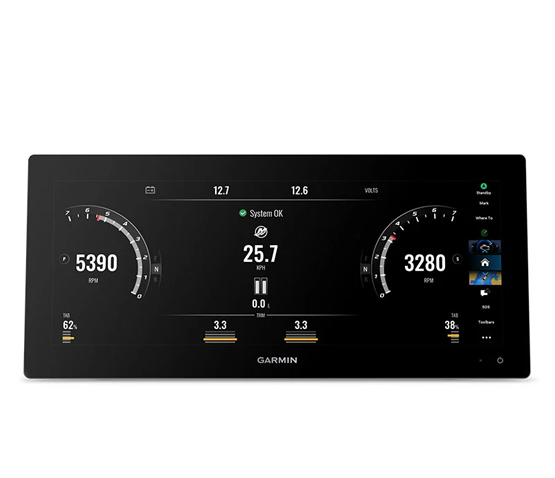

ENGINE CONNECTIVITY
You can connect your chartplotter to different engines, including select Yamaha® and Mercury® engines.
ONEHELM FEATURE

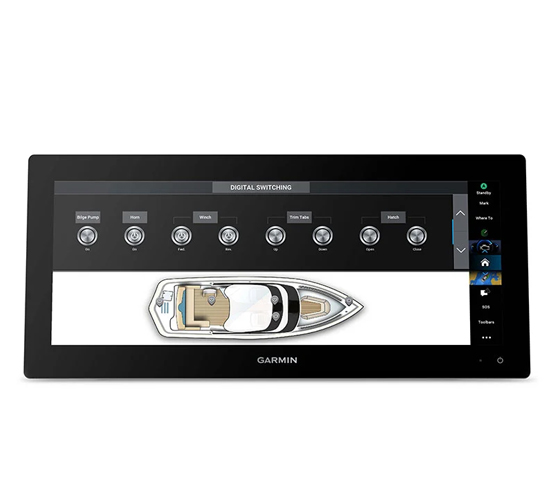

This feature brings together all of the operations and capabilities of EmpirBus™ digital switching and other third-party devices on one screen.

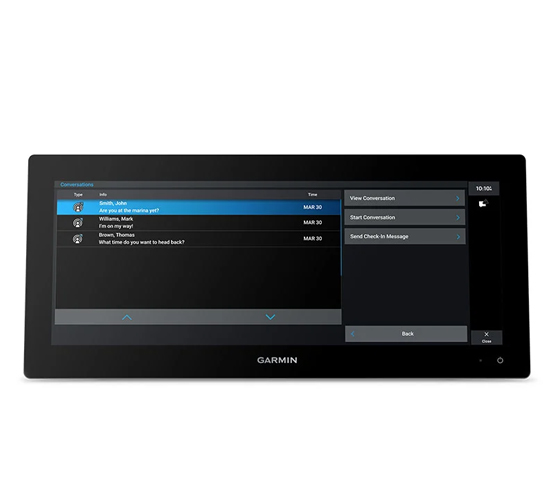

SEND INREACH® DEVICE MESSAGES
Pair your inReach satellite communicator3 to your chartplotter, and type custom messages by using your MFD’s on-screen keyboard. Access your contact list, or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.
CONNECT WITH ADDITIONAL BOAT CONTROL OPTIONS.
POWER-POLE® SHALLOW WATER ANCHOR
By networking the GPSMAP 15x3 chartplotter with your Force® trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features4 from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and end-of-route anchoring. Spend more time fishing, less time positioning.
TROLLING MOTOR INTEGRATION

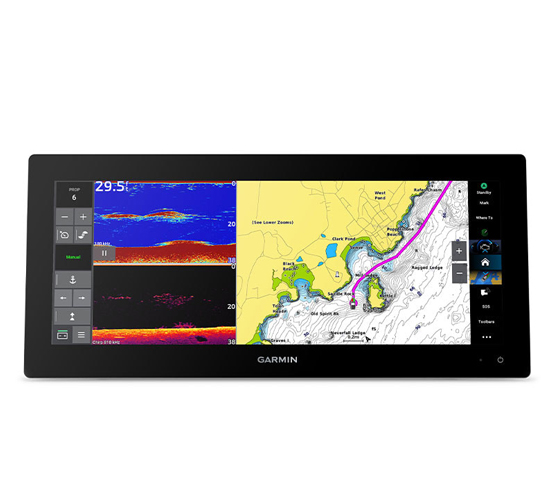

Get support and integration for your Force series trolling motor (sold separately) to gain more control while you fish.
In The Box
- GPSMAP 1523xsv ultrawide chartplotter
- microSD™ card preinstalled
- Power cable
- Thin flush mount kit with gasket
- Protective cover
- 8-pin transducer to 12-pin sounder adapter cable
- 2 m backbone/drop cable and T-connector for NMEA 2000® Network
- Documentation
Specification
General |
|
| DIMENSIONS | 15.3″ x 7.02″ x 3.3″ (388.9 x 178.5 x 82.9 mm) |
|---|---|
| WEIGHT | 7.2 lbs (3.26kg) |
| WATER RATING | IPX7 |
| TOUCHSCREEN | Yes |
| DISPLAY TYPE | Ultrawide display, IPS |
| DISPLAY SIZE | 13.6″ x 5.1″; 14.5″ diagonal (34.6 x 12.9 cm; 36.8 cm diagonal) |
| DISPLAY RESOLUTION | 1920 x 720 pixels |
| MOUNTING OPTIONS | Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| POLARIZED LENS VIEWABILITY | Yes |
Maps & Memory |
|
| ACCEPTS DATA CARDS | 2 microSD™ cards (back of device) |
|---|---|
| COMPATIBLE WITH GARMIN SD CARD READER | yes (USB card reader) |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| GPS | Yes |
|---|---|
| GLONASS | Yes |
| GALILEO | Yes |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000 COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| SUPPORTS WAAS | Yes |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | yes (with external GPS antenna) |
Chartplotter Features |
|
| SMART MODE COMPATIBLE | Yes |
|---|---|
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GSD BLACK BOX SONAR SUPPORT | Yes |
| GCV BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN® COMPATIBLE | yes |
| SUPPORTS VOICE COMMANDS | yes (with external accessory) |
| GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | Yes |
| WIRELESS REMOTE COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
| SPOKEN AUDIO ALERTS | Yes |
| ONEHELM SUPPORT | Yes |
Electrical Features |
|
| POWER INPUT | 10 to 32 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 2.44 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 4.21 A |
| MAXIMUM POWER USAGE AT 10 VDC | 56.93 W |
Sonar Features |
|
| DISPLAYS SONAR | Yes |
|---|---|
| POWER OUTPUT | 1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Yes |
| CLEARVÜ | Yes |
| SIDEVÜ | Yes |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |

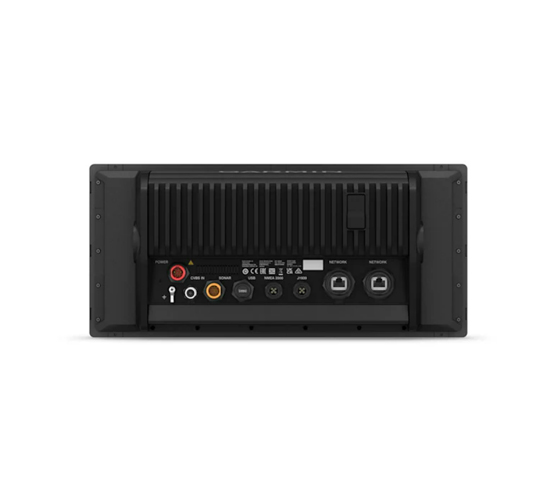

Connections |
|
| NMEA 2000® PORTS | 1 |
|---|---|
| NMEA 0183 INPUT (RX) PORTS | 1 |
| NMEA 0183 OUTPUT (TX) PORTS | 1 |
| VIDEO INPUT PORTS | 1 (BNC composite) |
| J1939 PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 |
| 12-PIN TRANSDUCER PORTS | 1 |
| USB PORTS | Yes |
| BLUETOOTH® PAIRING | yes (BLE) |
| ANT® (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
