OVERVIEW
BLACK BOX DESIGN
Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.

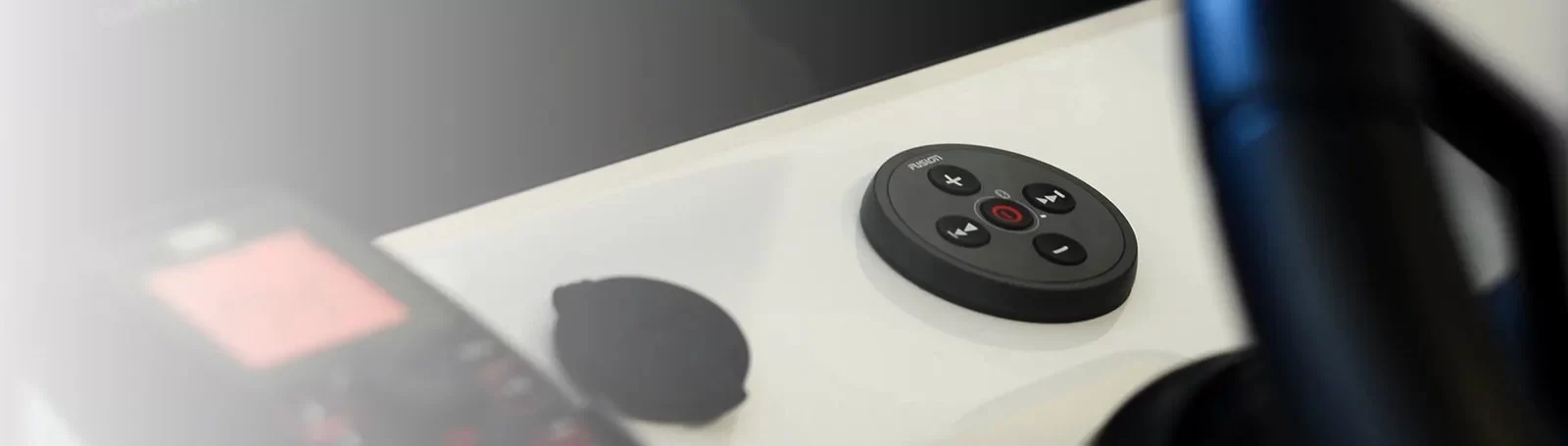

IPX7 WIRED REMOTE CONTROL
An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.
Enjoy a variety of source options.
MULTIPLE SOURCE OPTIONS
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
DAB+ READY
Enjoy high quality digital radio with DAB+ radio¹.
1 Requires MS-DAB100A antenna module (sold separately). Available in Europe and Australia only.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.
Specification
General
| PHYSICAL DIMENSIONS | Black Box (HxWxD): 2.63″ x 6.10″ x 3.70″ (60 x 155 x 94 mm) Remote (Diameter x Depth): 2.56″ x 2.13″ (65 x 54 mm) |
|---|---|
| WATER RATING | Black Box: IPX3 (when properly installed) Remote: IPX7 (front panel only, when properly installed) |
| POWER INPUT | 10.8-16 VDC |
| OPERATING TEMPERATURE RANGE | 32° to 122° F (0° to 50° C) |
| CURRENT (MAX.) | 15 A |
| FUSE | 15 A |
| NMEA 2000 LEN | 1 (50 mA) |
| BLUETOOTH WIRELESS RANGE | Up to 30 ft (10 m) |
| ANT WIRELESS RANGE | Up to 10 ft (3 m) |
| WIRELESS FREQUENCIES/PROTOCOLS | Bluetooth 2.4 GHz @ +1.9 dBm nominal ANT 2.4 GHz @ +1.9 dBm nominal |
| COMPASS-SAFE DISTANCE | 5.9″ (150 mm) |
Stereo Features
| BUILT-IN AMPLIFIER | Class-AB |
|---|---|
| PEAK POWER | 200 W |
| RATED POWER OUTPUT (4 OHM) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| FUSION-LINK™ CONTROL | yes (MFD, smartphone and Garmin watch) |
| MULTI-ZONE™ TECHNOLOGY | 2 zones |
| BLUETOOTH WIRELESS TECHNOLOGY | |
| ANT WIRELESS TECHNOLOGY | |
| DAB+ READY | yes (requires DAB100A antenna module) |
| NRX REMOTE COMPATIBILITY | |
| SOFTWARE UPDATES | USB |
| WARRANTY | 1 year |
Sources
| SOURCES | AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/ DAB+ ready (available in Europe and Australia only) |
|---|
Connectivity
| AUXILIARY INPUT | 1 RCA input (AUX) |
|---|---|
| NMEA 2000 | 1 port |
| USB 2.0 | 1 port |
| AM/FM RADIO | 1 Motorola antenna connector port |
| SPEAKER | 2 connections (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 2 zones (requires external amplification) |
| LINE OUT | 2 (1 x L + R per zone, requires external amplification) |
| SUBWOOFER OUT | 2 (labeled zone 1 and zone 2, both linked to zone 1 volume; requires external amplification) |
IN THE BOX
- MS-BB100 media black box
- IPX7 wired remote control
- One remote control mounting nut (M56)
- One remote control mounting gasket
- Four 8-gauge, mounting screws
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harness
- 6 ft (2 meter) NMEA 2000® drop cable
- Documentation
