OVERVIEW
Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to enhance your listening experience.
- Crystal-clear premium sound quality is suited for the marine environment.
- Water-resistant connectors provide simplified installation and superior protection.
- The rigorously tested marinised design has an IP65 rating.

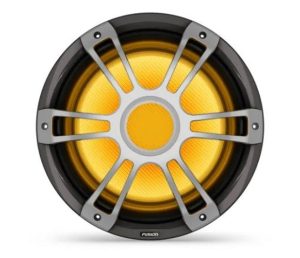

- Available in classic 10″ design as well as 10″ and 12″ sports style design.
- CRGBW LED lights set the scene on your boat.
- Built to last season after season, the Fusion Signature Series 3i Marine Subwoofers include a supported 3-year warranty.
IN THE BOX
- One subwoofer (based on what you select)
- 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
- Water-resistant cable assembly with 2-pin connector (5.9″ (150 mm))
- Water-resistant cable assembly with 6-pin connector ((5.9″ (150 mm)); sports style with LED models only)
- Documentation
SPETIFICATIONS
General | |
| WARRANTY | 3 years |
|---|---|
| SIZES | 10″/12″ |
| COLOUR | 10″: Classic white or Sports white or Sports grey 12″: Sports white or Sports grey |
| PHYSICAL DIMENSIONS (DIAMETER) | 10″ (Classic/Sports): 275 mm (10.83″) 12″ (Sports): 356 mm (14.02″) |
| PHYSICAL DIMENSIONS (DEPTH) | 10″ (Classic): 162mm (6.38″) 10″ (Sports): 172mm (6.77″) 12″ (Sports): 254mm (10″) |
| WEIGHT | 10″ (Classic): 5.06 kg (11.2 lbs) 10″ (Sports): 4.98 kg (11 lbs) 10″ (Sports) with CRGBW: 5.12 kg (11.3 lbs) 12″ (Sports): 10.93 kg (24.1 lbs) |
| WATER AND DUST RATING | IP65 |
| SPEAKER TYPE | Subwoofer |
| CONTINUOUS POWER HANDLING (RMS) | 10″: 300 W 12″: 700 W |
| SENSITIVITY (SPL @ 1 W/1 M) | 86 dB |
| FREQUENCY RESPONSE (+/- 3 DB) | 10″: 30 Hz-2 kHz 12″: 20 Hz-2 kHz |
| NOMINAL IMPEDANCE | 4 Ω |
| RECOMMENDED AMPLIFIER POWER (RMS) | 10″: 50-600 W 12″: 200-1000 W |
| LED LIGHTING | Yes – CRGBW (selected Sport models only) |
| LED SUPPLY VOLTAGE | 10.8-16 VDC (selected Sport models only) |
| LED LOAD CURRENT @ 14.4 VDC (MAX) | 300 mA (selected Sport models only) |
| OPERATING TEMPERATURE RANGE | 0° to 50° C (32° to 122° F) |
| CONE MATERIAL | Polypropylene cone with rubber surround |
Electrical Features | |
| COMPASS SAFE DISTANCE | 10″: 520 cm (205″) 12″: 460 cm (181″) |
|---|---|
Networking & Connections | |
| SPEAKER CONNECTIONS | Flying Lead with Water-resistant 2-way Connector, 150mm (5.9″) |
|---|---|
| LED CONNECTION | Flying Lead with Water-resistant 6-way Connector, 150 mm (5.9″) (selected Sport models only) |
Mounting Dimensions | |
| MOUNTING DIAMETER CLEARANCE | 10″: 223mm (8.78″) 12″: 306mm (12.05″) |
|---|---|
| MOUNTING DEPTH CLEARANCE | 10″: 133 mm (5.24″) 12″: 207mm (8.15″) |
| FRONTAL GRILLE PROTRUSION | 10″: 42 mm (1.65″) 12″: 50 mm (1.97″) |
