WHAT YOU'LL LOVE
OUR CLEAREST SONAR

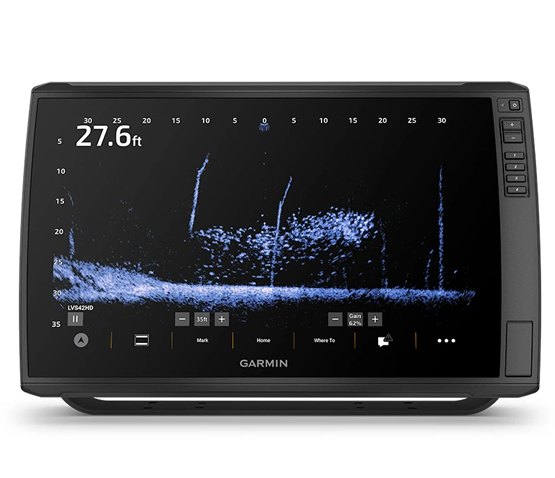

See fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.
NO BLACK BOX

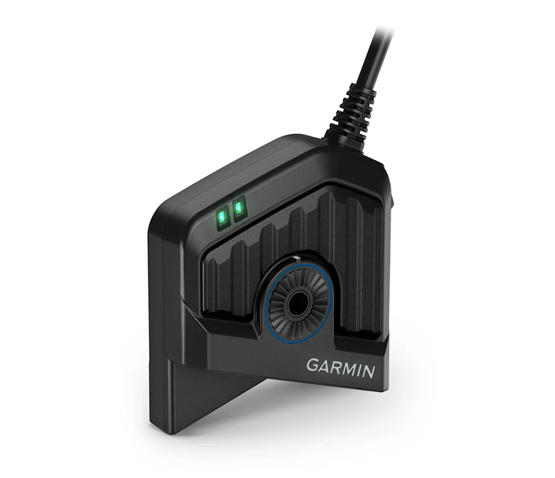

The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.
FAST PROCESSING
Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.
INTEGRATED SENSORS
Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.
IMPROVED COVERAGE

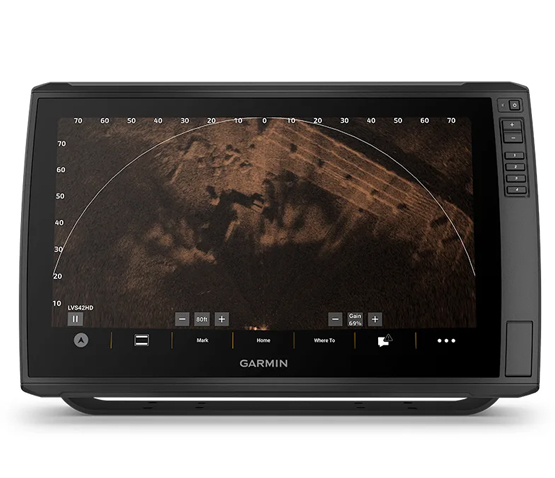

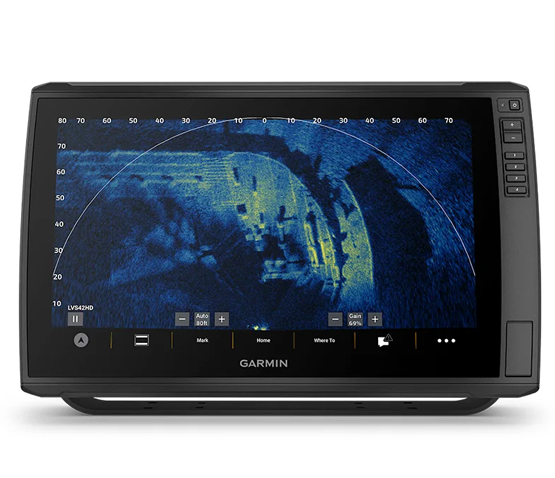

Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.
VIVID COLOR PALETTES

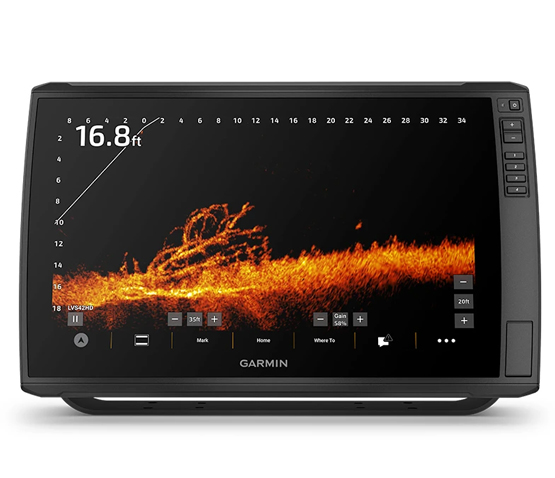

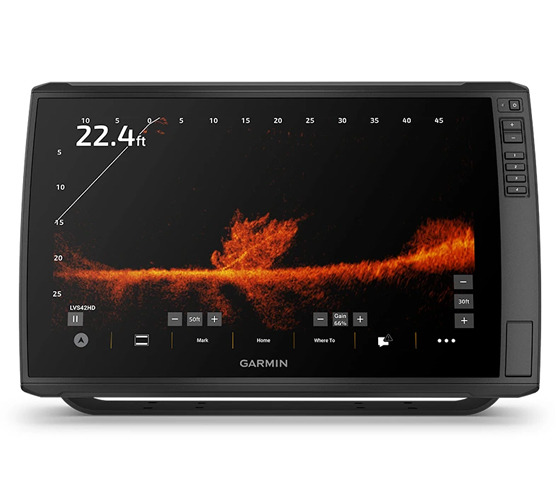

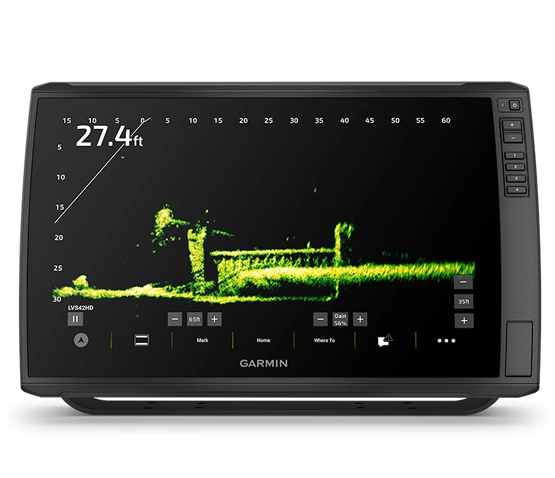

When LiveScope 2 HD is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.
In The Box
- LiveScope 2 LVS42HD transducer
- Adjustable perspective shaft mount for LiveScope 2 transducers
- Trolling motor barrel mount
- Power/network cable with adapter
- Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
- Hardware
- Documentation
Specification
General
| TRANSDUCER BEAMWIDTH | Forward: 20° x 165° Down, Perspective: 20° x 180° |
| TRANSDUCER CABLE LENGTH | 5.5 m (18 ft) |
| TRANSDUCER NUMBER OF PINS | 7 |
| DIMENSION | 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm) |
| WEIGHT | 3.62 lbs (1.646 kg) |
| TEMPERATURE RANGE | Operating: 0 C to 40 C |
Electrical Features
| POWER INPUT | 10-35 V |
| POWER USAGE | 32 W max |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4″ |
Sonar Features
| FREQUENCY | 850 kHz-1600 kHz |
| TRANSMIT POWER | 521 W |
| MAXIMUM DEPTH | Down and Forward: 125’ |
| SONAR TYPE | Live |
| TARGET SEPARATION @ 100′ | 12.6″ |
| TARGET SEPARATION @ 30′ | 3.8″ |
| PERSPECTIVE MODE MOUNT INCLUDED | Yes (adjustable angles) |
| WATER DETECTION TRANSMIT CONTROL | Yes |
Networking & Connections
| GARMIN MARINE NETWORK PORTS | 1 BlueNet (small connector) with GMN1 Adapter |
| POWER CONNECTION | Yes (2-wire) |
