Features
- For small outboards with maximum weight capacity of 193 kg and maximum horsepower of 115 HP
- Great for shallow water boats, including Gheenoes, river runners, jon boats and skiffs
- Lifts in 8 seconds for fast adjustment
- Lightweight construction at only 10 kg
- Self-contained hydraulics
- Small footprint: only 37 cm wide and 29 cm high
Note: Gauge is not available for Atlas Micro Jacker. Atlas Micro Jacker does not come with the clamp-on motor adapter.
Specs
With the Micro Jacker in place, you have about 21.6 cm to work with in height. This includes 3.8 cm of adjustment at the transom, 2.5 cm on the motor side, 2.5 cm of adjustment with the motor, and 12.7 cm of hydraulic lift with the Micro Jacker itself.
Horsepower note: Purchaser should assure that their outboard does not exceed either 115 horsepower or 193 kg, regardless of outboard manufacturer, model or production date.
| SKU | AHJM-4-DP |
|---|---|

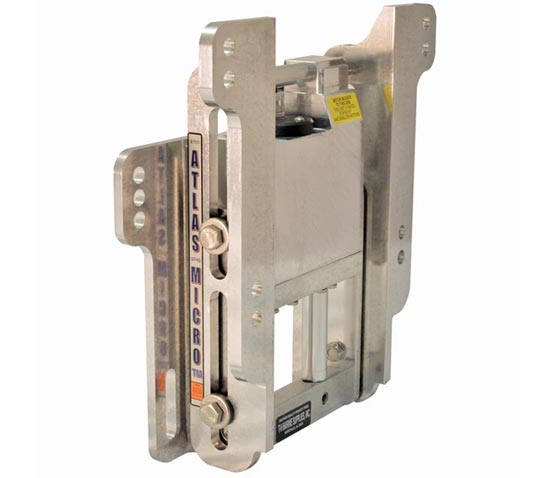

| PRODUCT NAME | "Atlas" Micro 4" Setback Hydraulic Jack Plate |
| TYPE | Small outboard hydraulic jack plate |
| SETBACK | 10 cm |
| MAX WEIGHT | 193 kg |
| MAX HORSEPOWER | 115 HP |
| WEIGHT | 10 kg |
| WIDTH | 37 cm |
| HEIGHT | 29 cm |
