GELEX G5.5

Overview

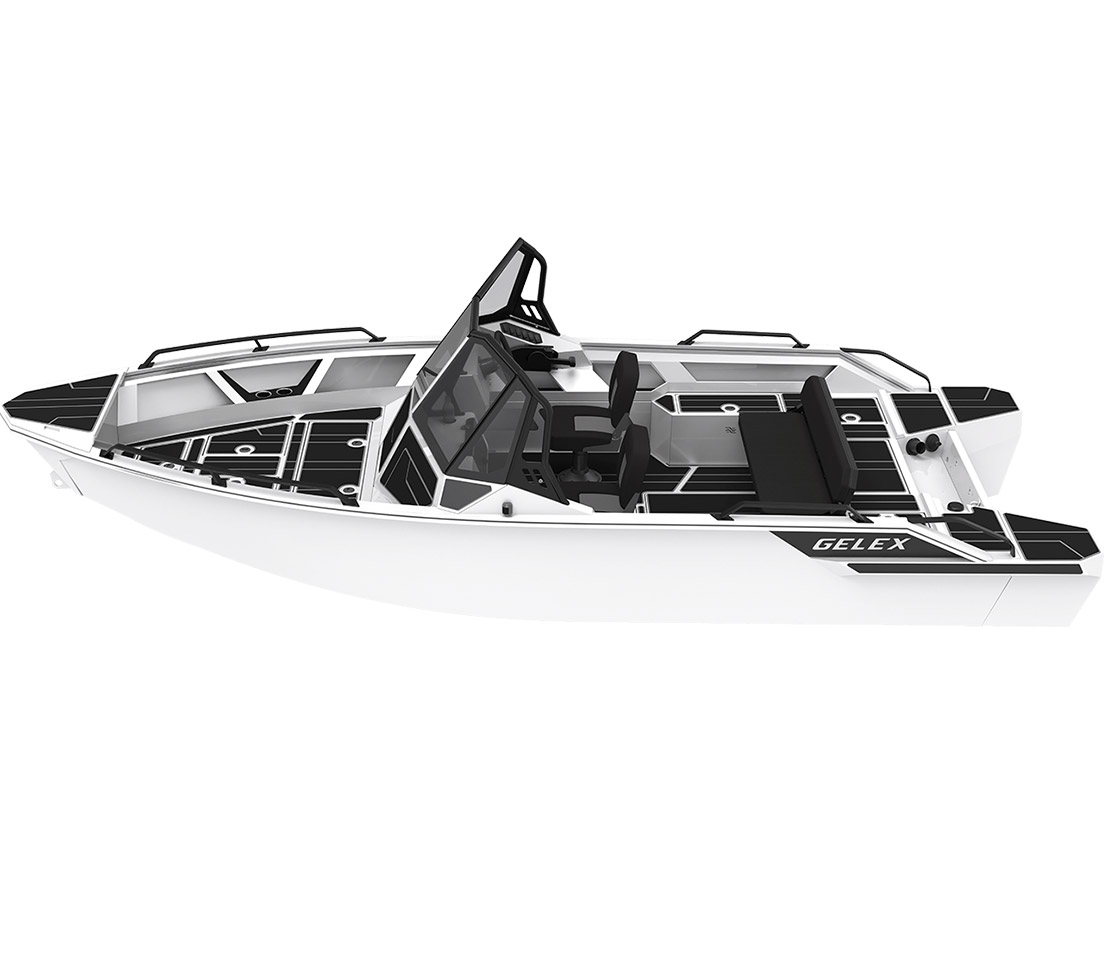

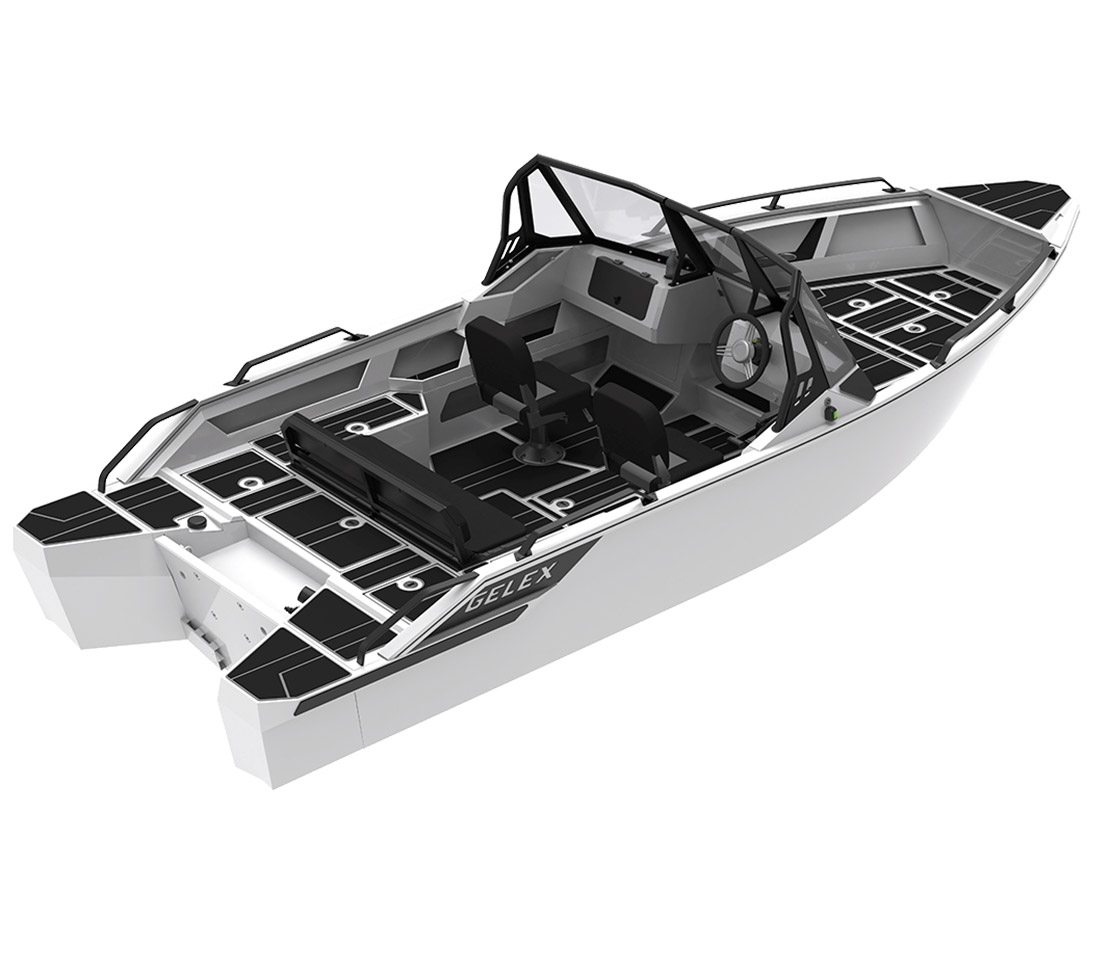

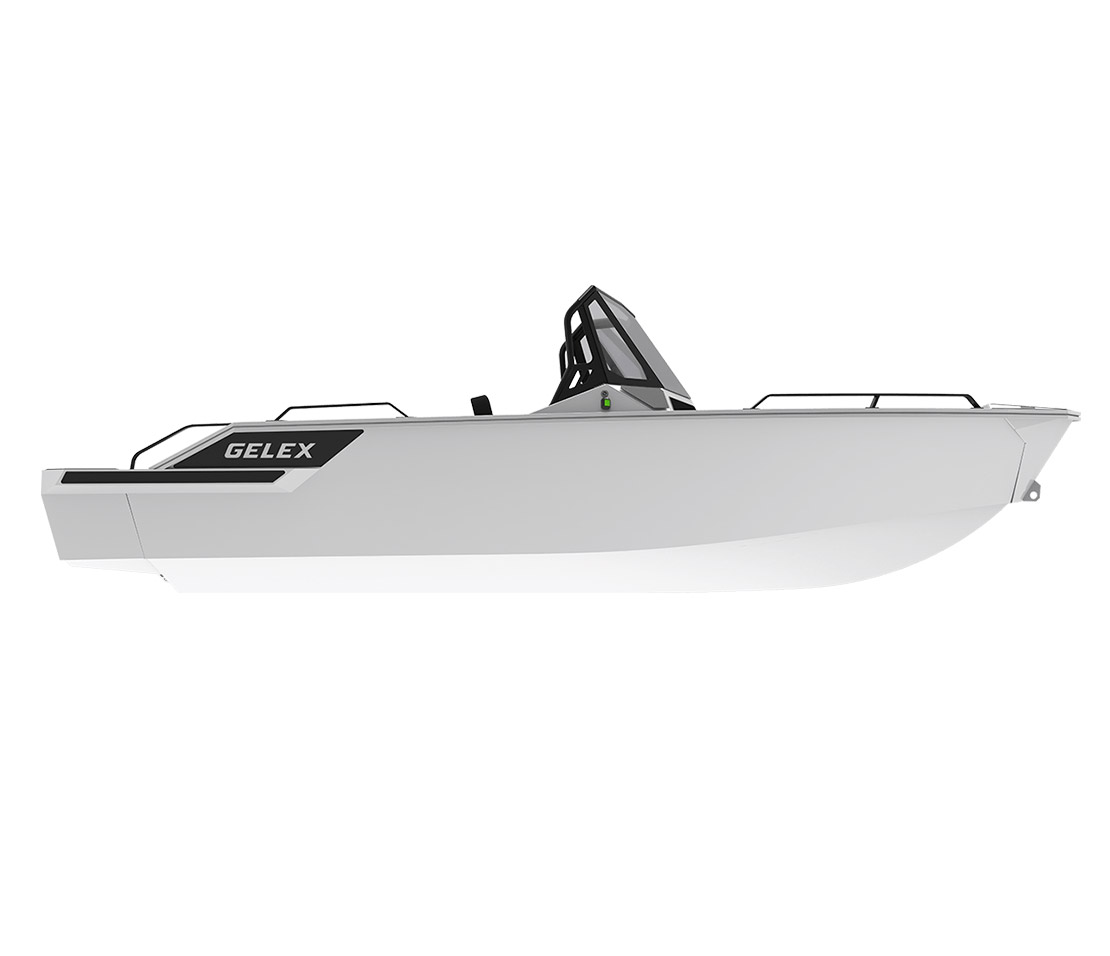

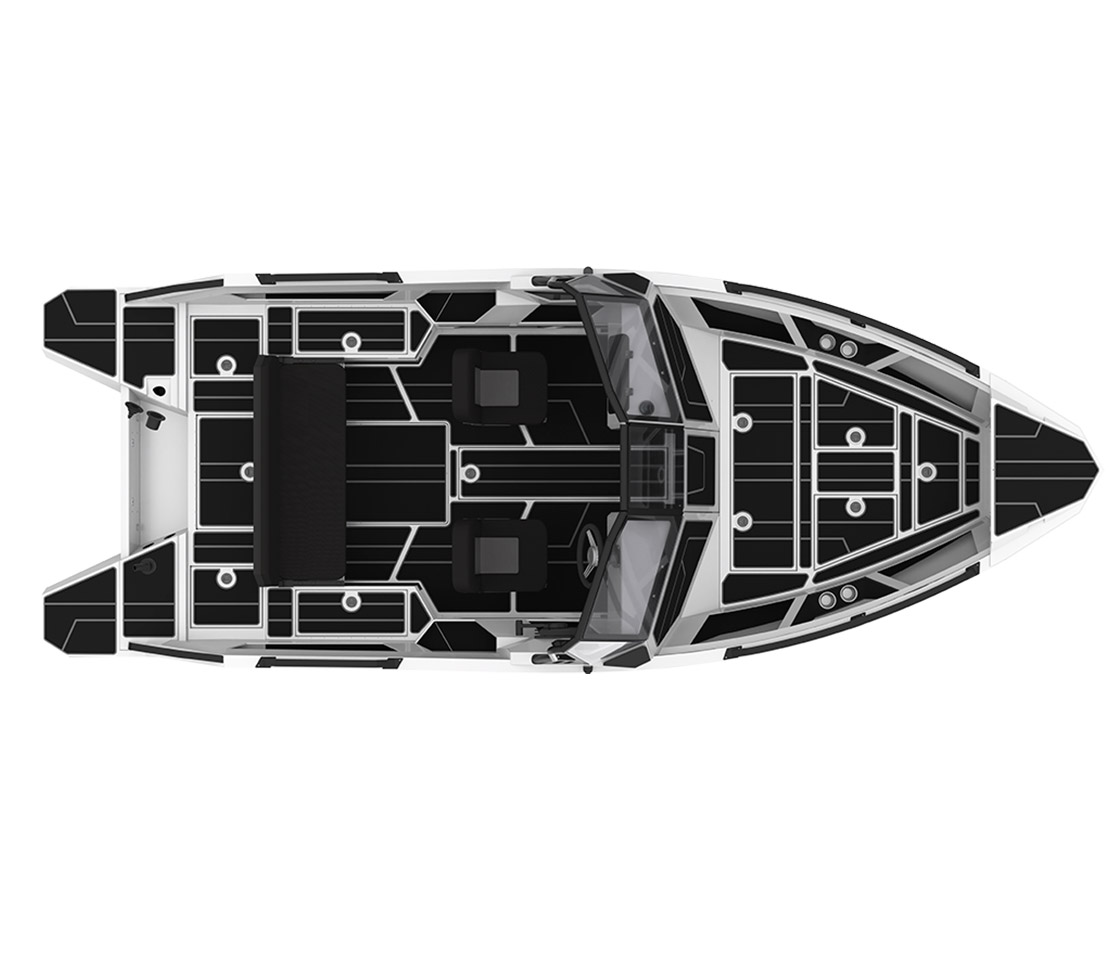

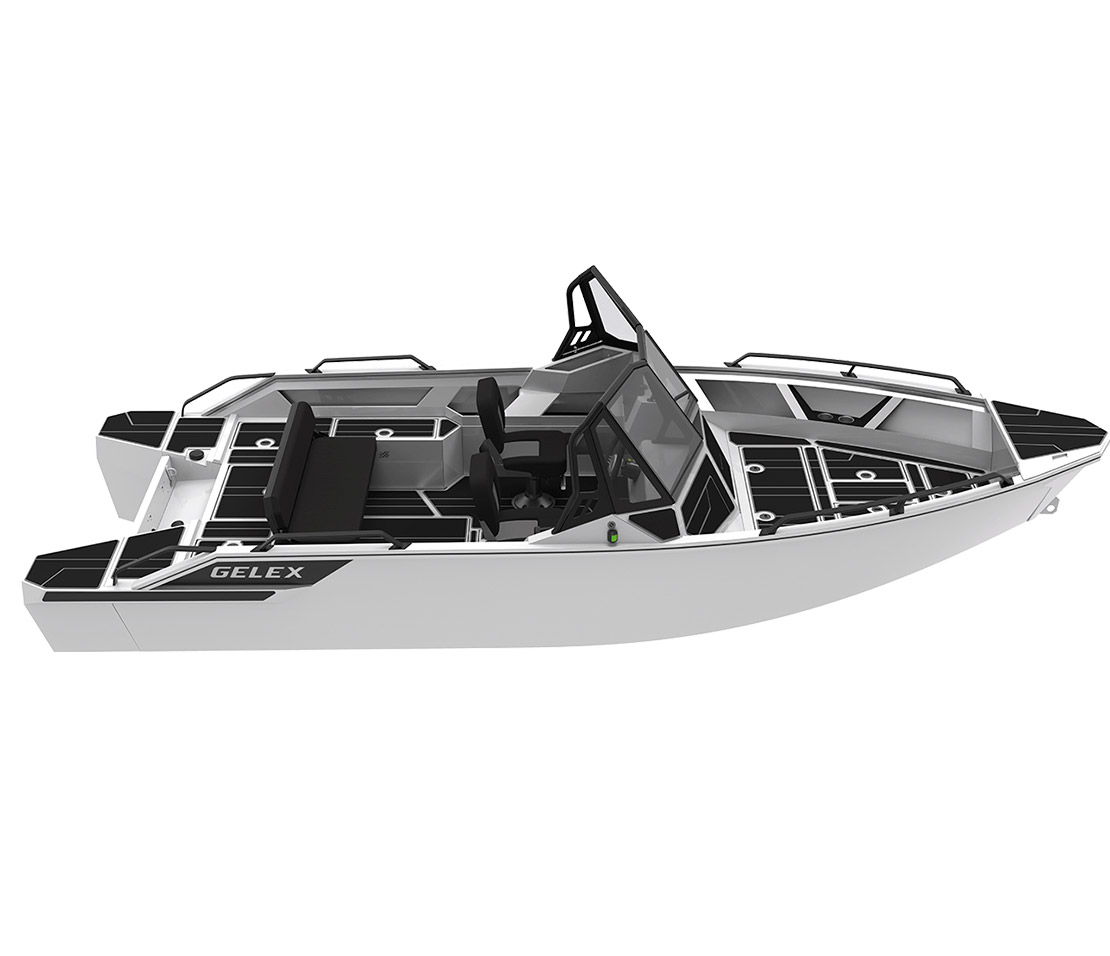

GELEX G5.5 – Aluminum Boat for Power, Fishing and Family Adventures.

GELEX G5.5 is an innovative aluminum boat designed for users who value power, dynamics and comfort on the water. With a length of 5500 mm, width of 2190 mm and weight of 520 kg with basic equipment, this model offers a spacious layout and strong performance for active recreation.

The boat can be equipped with an outboard engine up to 175 HP, with 150 HP recommended engine power. GELEX G5.5 is built for fast and exciting journeys, while keeping enough stability and deck space for fishing, outdoor activities and family trips.

The model is available in several equipment configurations, including double console, remote console with windshield and aft sofa, center console with driver’s seat and aft couch, or double console with glass. This makes GELEX G5.5 a versatile choice for leisure boating, fishing and comfortable water travel.

Standard Features

Hull

Fully painted body with gray powder polyester paint RAL 7011
Reinforced bow platform with the ability to install additional equipment, including anchor winch or electric anchor
T-shaped profile for mounting sliding seats, sofa and other equipment on both sides of the cockpit side niches
Built-in elements for seat posts, 4 pcs
PVC mooring bar dark gray profile, mounted in the external T-slot
Inner aluminum overlay on the transom, 1 pc
Outer plastic overlay on the transom, 1 pc
Mounting platform for installing a sonar sensor on the transom, 2 pcs
Zinc anodes for additional hull corrosion protection, 4 pcs
Preparation for an electrical package with cable channels
Buoyancy blocks according to ISO 6185 standard
Drainage system
Keel protection

Deck and fittings

Bow rim, 1 pc
Stern rims, 2 pcs
Duck mooring rims, 4 pcs
Adjustable internal side handles in T-slot, 4 pcs
Piano hinges for locker covers
Stainless steel locker locks

Storage

Self-draining bow lockers, 3 pcs
Self-draining side lockers for storing items and accessories, 4 pcs, including 2 for storing 4 fishing rods
Self-draining stern locker, 1 pc
Self-draining anchor compartment, 1 pc
Self-draining deck compartment, 1 pc
Side compartments for storing fishing rods, 4 pcs

Equipment

Detachable oars with storage bag, 2 pcs

Optional Features

Hull and finish

Boat hull painting in a different color
Exterior side wrapping with decorative film
Interior part of the hull covered with marine carpet
Interior cockpit surfaces wrapped with EVA Marine Deck materials

Steering and seating

GC-09 side console
GC-10 outboard console
GC-10L side console with windshield, railing and shelf for items
GC-04 central console
GC-08 two consoles with full glazing
GK-02 control block bracket for installation with GC-09 side console
Mechanical steering system with steering wheel, gearbox and cable
Aluminum sliding seats with fixation
Swivel seats
Stern adjustable two-seater sofa-platform GS-06
Stern adjustable two-seater sofa GS-07
Soft covers for aluminum seats

Comfort and accessories

Removable side railings, 4 pcs
Mooring canopy, shape depends on the installed console
High-pressure pump with spray gun
Bag-locker under the seat
Rowing kit with oars, 2 pcs and universal lock, 2 pcs
Fuel system with stationary aluminum tank for 50 liters, fuel level sensor, filler neck and connecting hoses
Pocket mesh for small items, 4 pcs
Mooring / transport canopy

Electric equipment

Electrical kit with control block, 5 switching keys and 1 spare key
12V socket
Set of fuses
Navigation lights, green and red
Masthead light, white
Mass switch
Battery tray
Automatic bilge pump
Horn, depending on console modification

Fishing equipment

Fishing package with rod holder on the inner side, 4 pcs
Borika mounting system with platform and universal lock, 2 pcs
Additional rod holder, 2 pcs
Universal side lock on the gunwale, 2 pcs
Mounting platform for sonar installation
Anchor holder with automatic stopper on the gunwale

Extra features

Folding aft sofa that turns into a fish platform
Bimini tent for protection from rain and sun
Design painting on the side of the boat at your choice
Parking awning for boat protection
Swivel seats in the bow and stern of the boat for comfortable fishing
Boat hull lighting
Aerator for fish storage
Fish set with Borika mounting system
Comfortable seats
Lining of the inner walls of the hull with non-slip EVA Marine Deck material

Specification

Hull length	5.5 m
Beam	2.19 m
Deadrise at transom	14°
Draft	350 mm
Transform height	635 mm
Hull material	Aluminium
Hull thickness	3/4 mm
Boat weight	520 kg
Max weight capacity	820 kg
Engine	175 HP
Fuel tanks	100 l
Persons	5
