GELEX G5
Overview

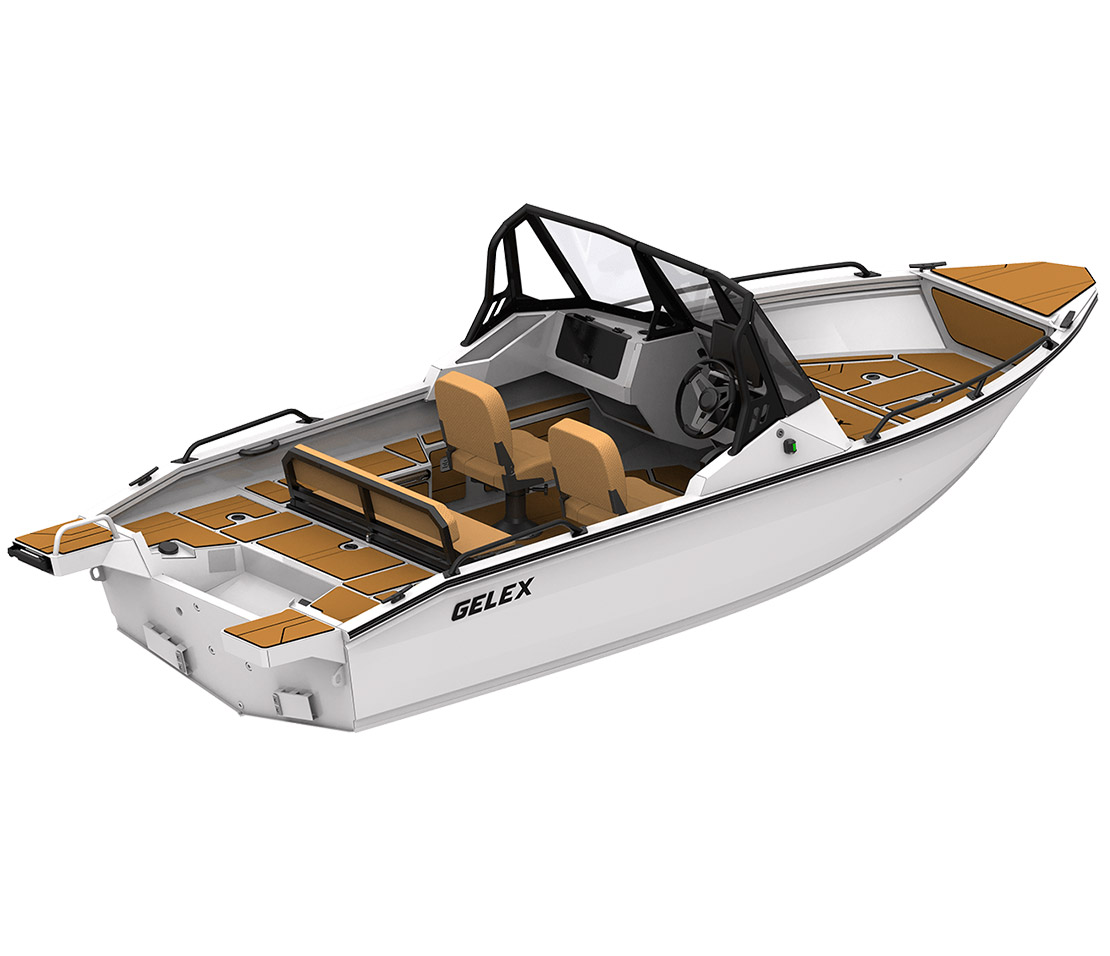

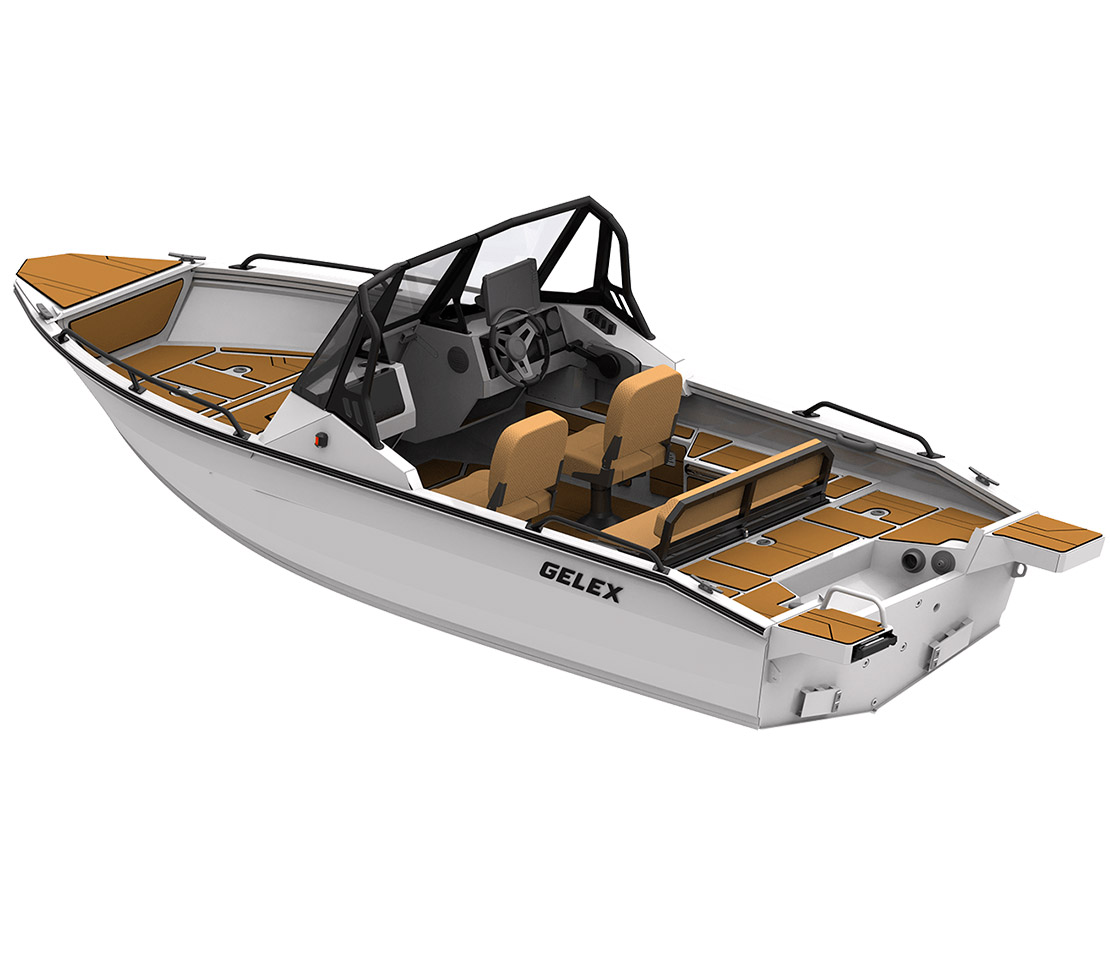

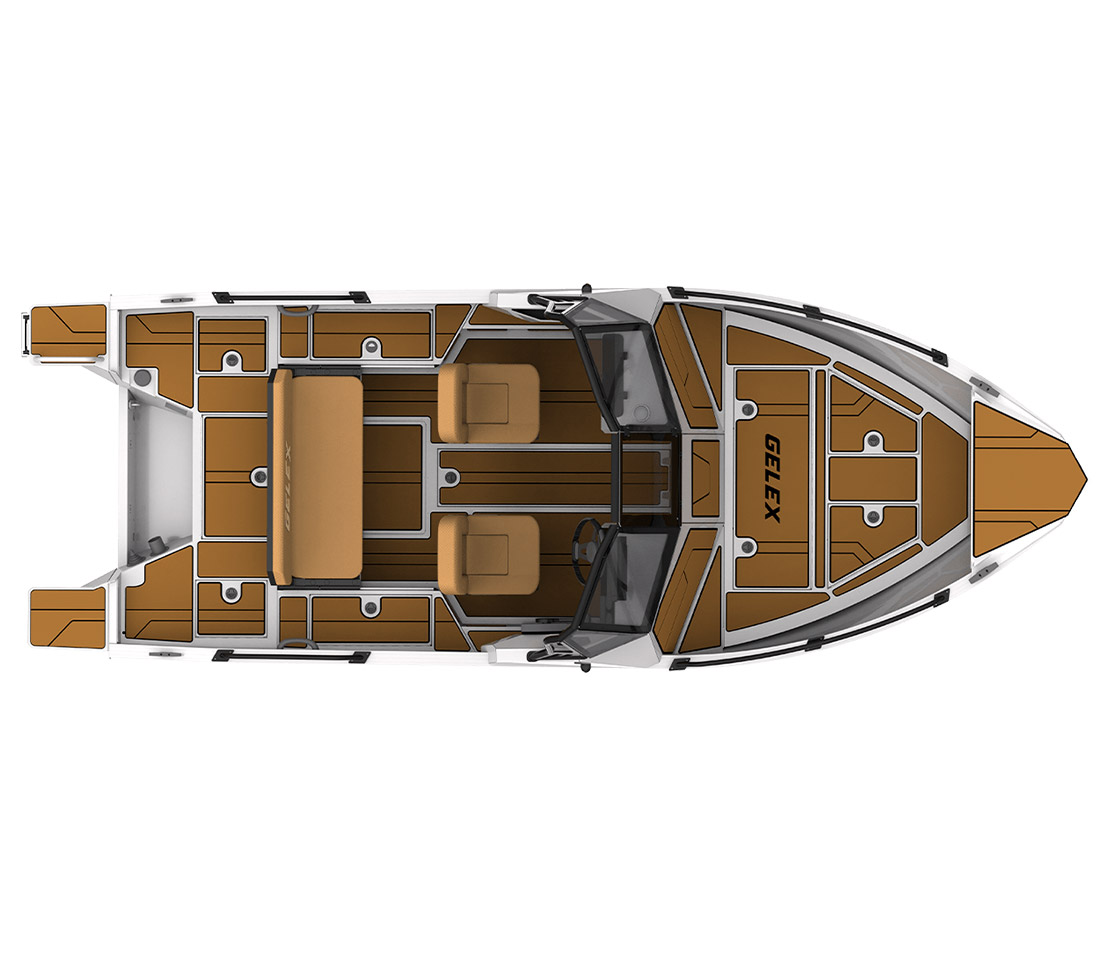

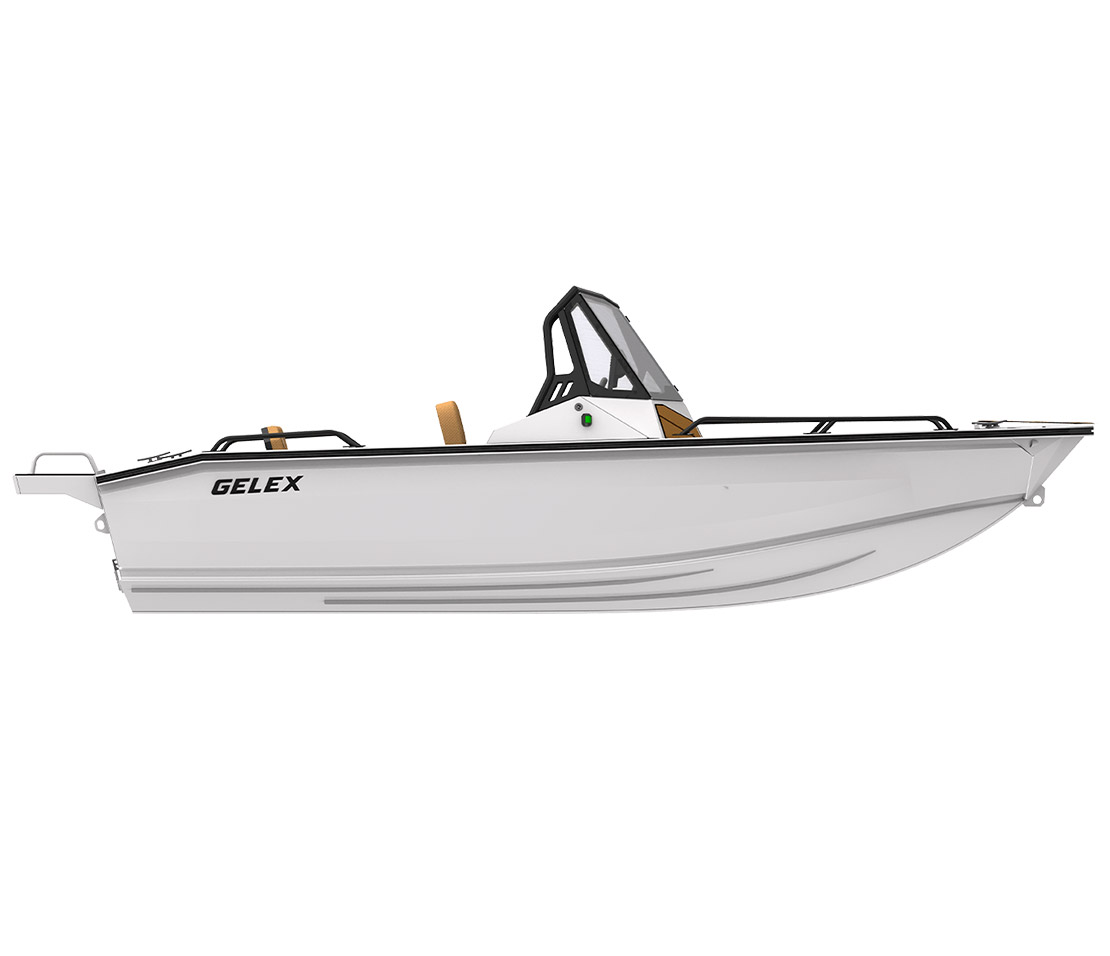

GELEX G5 – Aluminum Boat for Recreation, Sport and Fishing.
GELEX G5 is a practical and functional aluminum boat equipped with a spacious deck. With a length of 4940 mm, width of 1955 mm and weight of 450 kg with basic equipment, this model offers a strong balance of space, stability and everyday usability on the water.
The boat is designed for recreation, sport and fishing, with capacity for 4 passengers and a maximum engine power of 100 HP. Its hull layout provides comfortable movement on board, convenient storage and confident handling for rivers, lakes and coastal leisure use.
GELEX G5 can be configured with tiller control, center console, side console or double console with full tempered glass glazing. This makes the model flexible for different boating styles, from simple open-deck use to a more protected console layout for difficult conditions.
Standard Features
Hull
- Fully painted body with gray powder polyester paint RAL 7011
- Reinforced bow platform with the ability to install additional equipment, including anchor winch or electric anchor
- T-shaped profile for mounting sliding seats, sofa and other equipment on both sides of the cockpit side niches
- Built-in elements for seat posts, 4 pcs
- PVC mooring bar dark gray profile, mounted in the external T-slot
- Inner aluminum overlay on the transom, 1 pc
- Outer plastic overlay on the transom, 1 pc
- Mounting platform for installing a sonar sensor on the transom, 2 pcs
- Zinc anodes for additional hull corrosion protection, 4 pcs
- Preparation for an electrical package with cable channels
- Buoyancy blocks according to ISO 6185 standard
- Drainage system
- Keel protection
Deck and fittings
- Bow rim, 1 pc
- Stern rims, 2 pcs
- Duck mooring rims, 4 pcs
- Adjustable internal side handles in T-slot, 4 pcs
- Piano hinges for locker covers
- Stainless steel locker locks
Storage
- Self-draining bow lockers, 3 pcs
- Self-draining side lockers for storing items and accessories, 4 pcs, including 2 for storing 4 fishing rods
- Self-draining stern locker, 1 pc
- Self-draining anchor compartment, 1 pc
- Self-draining deck compartment, 1 pc
- Side compartments for storing fishing rods, 4 pcs
Equipment
- Detachable oars with storage bag, 2 pcs
Optional Features
- Boat hull painting in a different color
- Exterior side wrapping with decorative film
- Interior part of the hull covered with marine carpet
- Interior cockpit surfaces wrapped with EVA Marine Deck materials
- GC-09 side console
- GC-10 outboard console
- GC-10L side console with windshield, railing and shelf for items
- GC-04 central console
- GC-08 double console with full glazing
- GK-02 control block bracket for installation with GC-09 side console
- Mechanical steering system with steering wheel, gearbox and cable
- Aluminum sliding seats with fixation
- Swivel seats
- Stern adjustable two-seater sofa-platform GS-06
- Stern adjustable two-seater sofa GS-07
- Soft covers for aluminum seats
- Removable side railings, 4 pcs
- Mooring canopy, shape depends on the installed console
- High-pressure pump with spray gun
- Bag-locker under the seat
- Rowing kit with oars, 2 pcs and universal lock, 2 pcs
- Fuel system with stationary aluminum tank for 50 liters, fuel level sensor, filler neck and connecting hoses
- Pocket mesh for small items, 4 pcs
- Mooring / transport canopy
Electric equipment
- Electrical kit with control block, 5 switching keys and 1 spare key
- 12V socket
- Set of fuses
- Navigation lights, green and red
- Masthead light, white
- Mass switch
- Battery tray
- Automatic bilge pump
- Horn, depending on console modification
- Fishing package with rod holder on the inner side, 4 pcs
- Borika mounting system with platform and universal lock, 2 pcs
- Additional rod holder, 2 pcs
- Universal side lock on the gunwale, 2 pcs
- Mounting platform for sonar installation
- Anchor holder with automatic stopper on the gunwale
Request
Specification
| Hull length | 4.94 m |
| Beam | 1.955 m |
| Deadrise at transom | 12° |
| Draft | 300 mm |
| Transform height | 510 mm |
| Hull material | Aluminium |
| Hull thickness | 3/4 mm |
| Boat weight | 450 kg |
| Max weight capacity | 500 kg |
| Engine | 100 HP |
| Fuel tanks | 50 l |
| Persons | 4 |
