OVERVIEW
The Fusion FM Series subwoofers are designed to enhance your on-water audio listening experience with quality bass, in a sleek and minimalistic aesthetic.
- INNOVATIVE FLUSH-MOUNT DESIGN FOR A SLEEK AND MINIMALISTIC FINISH.
- LOW PROFILE, NEAR FLAT INSTALLATION WITH A MOUNTING PROFILE OF JUST 3 MM.
- CREATE A 2.1 AUDIO ZONE TO REDUCE SYSTEM COST AND SIMPLIFY INSTALLATION.
- WITH AN INCREASE IN REAL POWER, THE VOICE COIL PROVIDES A HIGH-QUALITY SOUND EXPERIENCE.

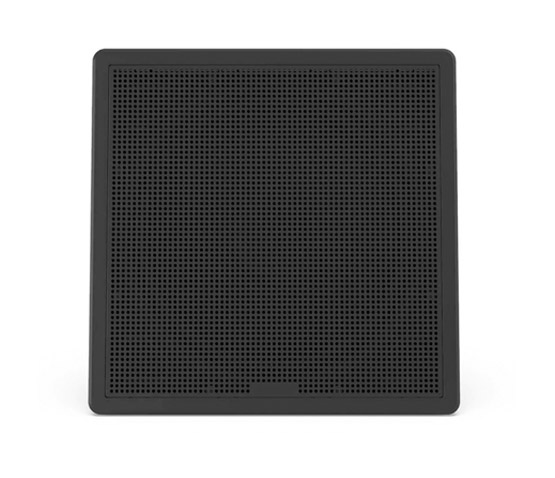

- THE SUBWOOFERS ARE AVAILABLE IN 10-INCH DESIGNS WITH A ROUND OR SQUARE FORM FACTOR.
- ENGINEERED TO LAST SEASON AFTER SEASON, THE SUBWOOFERS INCLUDE A 3-YEAR WARRANTY.
IN THE BOX
- One subwoofer (based on what you select)
- Documentation
SPETIFICATIONS
General |
|
| WARRANTY | 3 years |
|---|---|
| SIZES | 10″ |
| COLOUR | Round White or Round Black or Square White or Square Black |
| PHYSICAL DIMENSIONS (DIAMETER) | 11.18 mm (284″) |
| PHYSICAL DIMENSIONS (DEPTH) | 139.5 mm (5.49″) |
| WEIGHT | 10″ Round: 3 kg (6.61 lbs) 10″ Square White: 2.95 kg (6.5 lbs) 10″ Square Black: 3.1 kg (6.83 lbs) |
| WATER AND DUST RATING | IP65 |
| SPEAKER TYPE | Subwoofer |
| CONTINUOUS POWER HANDLING (RMS) | 120 W |
| SENSITIVITY (SPL @ 1 W/1 M) | 87 dB |
| FREQUENCY RESPONSE (+/- 3 DB) | 30 Hz-2 kHz |
| NOMINAL IMPEDANCE | 4 Ω |
| OPERATING TEMPERATURE RANGE | 0° to 50° C (32° to 122° F) |
| CONE MATERIAL | Polypropylene cone with rubber surround |
Electrical Features |
|
| COMPASS SAFE DISTANCE | 381 cm (150″) |
|---|---|
Networking & Connections |
|
| SPEAKER CONNECTIONS | Spade Connectors |
|---|---|
Mounting Dimensions |
|
| MOUNTING DIAMETER CLEARANCE | 269 mm (10.59″) |
|---|---|
| MOUNTING DEPTH CLEARANCE | 140 mm (5.51″) |
| FRONTAL GRILLE PROTRUSION | 3 mm (0.12″) |
Security Information |
|
| SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD) | 2021-09-10 |
|---|---|
