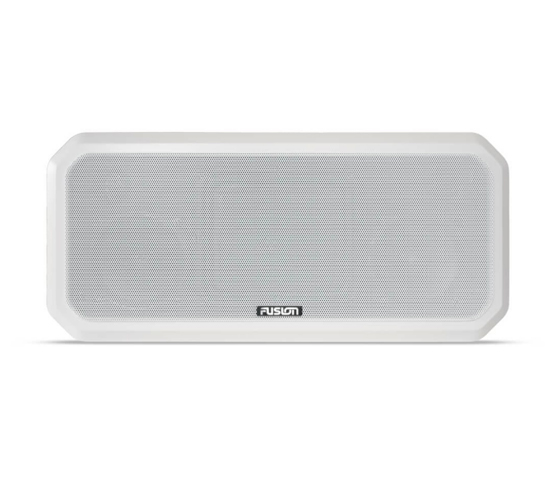

Garmin Fusion Sound-Panel Speaker System 100 W

Garmin Fusion Sound-Panel Speaker System 100 W

149,00 €

Fusion Sound-Panel Speaker System

VERSATILE, EASY-TO-INSTALL SPEAKER SYSTEM

The Sound-Panel from Fusion allows you to enjoy high-quality audio in your motorhome, without the headaches of installing speakers in areas where space is limited.

  • Optimally tuned, sealed enclosure with two 4″ speakers, two tweeters and a passive bass radiator.
  • Quick and easy installation with only one cutout and one connection required.
  • Multiple mounting options are available, including flush, recessed and surface mounting.
  • Stainless steel hardware and grille improve the looks and durability.
SKU: 010-01790-00 Category:
  • Description
  • Reviews (0)
Description

IN THE BOX

  • 1 Sound Panel
  • Mounting template
  • Documentation

SPETIFICATIONS

Security Information
SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD)2019-01-31
General
PHYSICAL DIMENSIONS (WXHXD)18.7″ x 8.43″ x 2.52″ (475 x 214 x 64 mm)
WATER AND DUST RATINGIP65
SPEAKER SIZE4″ (two)
PEAK POWER (WATTS)100 watts
SENSITIVITY (1 WATT @ 1 METRE)87 dB
FREQUENCY RESPONSE67 Hz – 20 kHz
RECOMMENDED AMPLIFIER POWER (WATTS RMS)5-50 watts
NOMINAL IMPEDANCE4 ohm
OPERATING TEMPERATURE RANGE32° to 122° F (0° to 50° C)
TWEETER TYPESoft dome
COMPASS-SAFE DISTANCE133.9″ (340 cm)
WARRANTY1 year
Mounting Dimensions
MOUNTING DIMENSION CLEARANCE (WXH)16.97″ x 6.73″ (431 x 171 mm)
MOUNTING DEPTH CLEARANCE1.61″ (41 mm)
