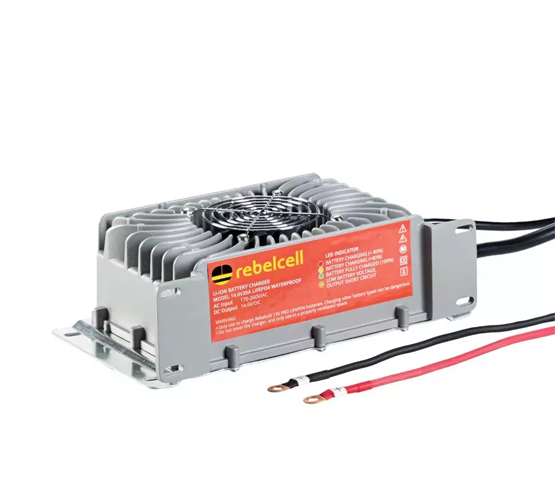

PRODUCT DESCRIPTION REBELCELL 14.6V35A LIFEPO4 BATTERY CHARGER (IP65) WATERPROOF
The 14.6V35A LiFePO4 charger waterproof (IP65) is designed to charge Rebelcell 12V EDGE and PRO LiFePO4 batteries. The charging programme ensures that the battery is charged safely and automatically with the correct charging profile.
The charging status can be monitored via the LED indicator. The charger includes built-in protection features such as short-circuit, reverse-polarity, overvoltage, overcharge and high temperature protection.
The charger is sealed with epoxy resin, making it suitable for permanent installation in a boat. It is intended only for charging Rebelcell 12V EDGE or PRO LiFePO4 batteries.
General | |
| PRODUCT NAME | 14.6V35A LiFePO4 charger waterproof (IP65) |
|---|---|
| PRODUCT CODE | WC14V35REPR |
| COMPATIBLE WITH | 12V EDGE / PRO LiFePO4 Batteries |
| TECHNOLOGY | Automatic charger with advanced high frequency switch mode power supply technology |
| EFFICIENCY | >91% |
| CHARGING PROFILE | Pre-charge / CC / CV / Cut-off |
| CONNECTOR | M8 tongue connector |
Electrical Data | |
| AC INPUT | 230 Volt 50-60Hz |
|---|---|
| POWER | 1200W |
| CHARGING VOLTAGE | 14.6V |
| MAXIMUM CHARGE CURRENT | 35A |
| MINIMAL BATTERY VOLTAGE | 3V |
| WORKING TEMPERATURE | -10°C to +40°C |
Charging Time | |
| 12V75 EDGE LIFEPO4 BATTERY | 3-4 h |
|---|---|
| 12V105 EDGE LIFEPO4 BATTERY | 5-6 h |
| 12V210 EDGE LIFEPO4 BATTERY | 7-8 h |
| 12V80 PRO LIFEPO4 BATTERY | 3-4 h |
| 12V120 PRO LIFEPO4 BATTERY | 5-6 h |
Electronics and Indicator | |
| CHARGE STATUS INDICATOR | Yes, via LED |
|---|---|
| LED 1 | Red <80%; yellow >80%; green 100% |
| COOLING | Yes, forced ventilation with fan to cool charger |
| HEAT SINK | Yes, the outside case of the charger functions as heat sink |
Protection | |
| OVER CHARGE PROTECTION | Yes |
|---|---|
| REVERSE POLARITY PROTECTION | Yes |
| SHORT CIRCUIT PROTECTION | Yes |
| OVERVOLTAGE PROTECTION | Yes |
| HIGH TEMPERATURE PROTECTION | Yes |
| SUITABLE FOR OUTDOOR USE | Yes |
Dimensions and Weight | |
| SIZE | 280x176x87 mm |
|---|---|
| WEIGHT | 3.5 kg |
| PACKAGE WEIGHT | 3.8 kg |
Certification and Warranty | |
| WARRANTY | Two years |
|---|---|
| CERTIFICATION | CE, ROHS |
| IP RATING | IP65 |
| STANDARDS | IEC 61000-3-2:2019 |
| BARCODE | 7106623695418 |
| EAN | 8720964630892 |
| HS CODE | 850440 / 85044060 |
