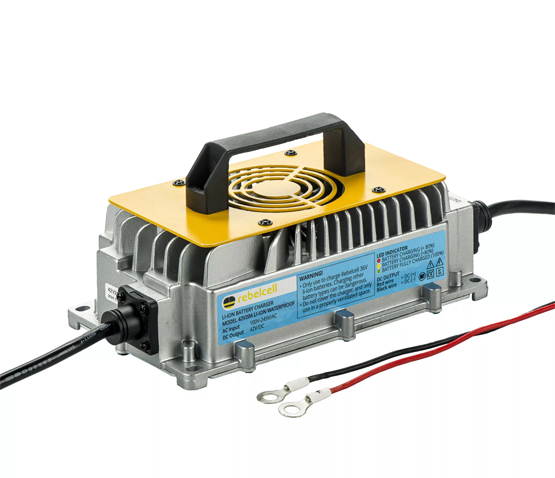

PRODUCT DESCRIPTION REBELCELL 42V20A LITHIUM BATTERY CHARGER (IP65) WATERPROOF
The 42V20A Lithium charger waterproof (IP65) is designed to charge Rebelcell 36V lithium batteries. The charging programme ensures that the battery is charged safely and automatically with the correct charging profile.
The charging status can be monitored via the LED indicator. The charger includes built-in protection features such as short-circuit, reverse-polarity, overvoltage, overcharge and high temperature protection.
The charger is sealed with epoxy resin, making it suitable for permanent installation in a boat. It is intended only for charging Rebelcell 36V batteries.
General | |
| PRODUCT NAME | 42V20A Lithium charger waterproof (IP65) |
|---|---|
| PRODUCT CODE | WC42V20REUA |
| COMPATIBLE WITH | 36V70 BT Lithium Battery |
| TECHNOLOGY | MCU three-stage intelligent charging technology |
| CHARGING PROFILE | Pre-charge / CC / CV / Cut-off |
| CONNECTOR | M8 |
Electrical Data | |
| AC INPUT | 100-245Vac 46-63Hz |
|---|---|
| POWER | 1200W |
| CHARGING VOLTAGE | 42V |
| MAXIMUM CHARGE CURRENT | 20A |
| MINIMAL BATTERY VOLTAGE | 4V |
| WORKING TEMPERATURE | 0°C to +45°C |
Charging Time | |
| 36V70 BT LITHIUM BATTERY | 5-6 h |
|---|---|
Electronics and Indicator | |
| CHARGE STATUS INDICATOR | Yes, via LED |
|---|---|
| LED INDICATOR | Standby: flashes alternatively |
| CHARGING STATUS | Red flashing: charging; yellow flashing: charge > 80% |
| FULL CHARGE STATUS | Green flashing: charge > 98%; green solid: charging complete |
| COOLING | Yes, forced ventilation with fan |
| HEAT SINK | Yes, outside case functions as heat sink |
Protection | |
| OVER CHARGE PROTECTION | Yes |
|---|---|
| REVERSE POLARITY PROTECTION | Yes |
| SHORT CIRCUIT PROTECTION | Yes |
| OVERVOLTAGE PROTECTION | Yes |
| HIGH TEMPERATURE PROTECTION | Yes |
Dimensions and Weight | |
| SIZE | 232x137x76 mm, including handle |
|---|---|
| WEIGHT | 2.8±0.3 kg |
| PACKAGE WEIGHT | 4 kg |
Certification and Warranty | |
| WARRANTY | Two years |
|---|---|
| CERTIFICATION | CE |
| STANDARD | IP65 |
| BARCODE | 8720964630205 |
| EAN | 8720964630205 |
| HS CODE | 850440 / 85044060 |
