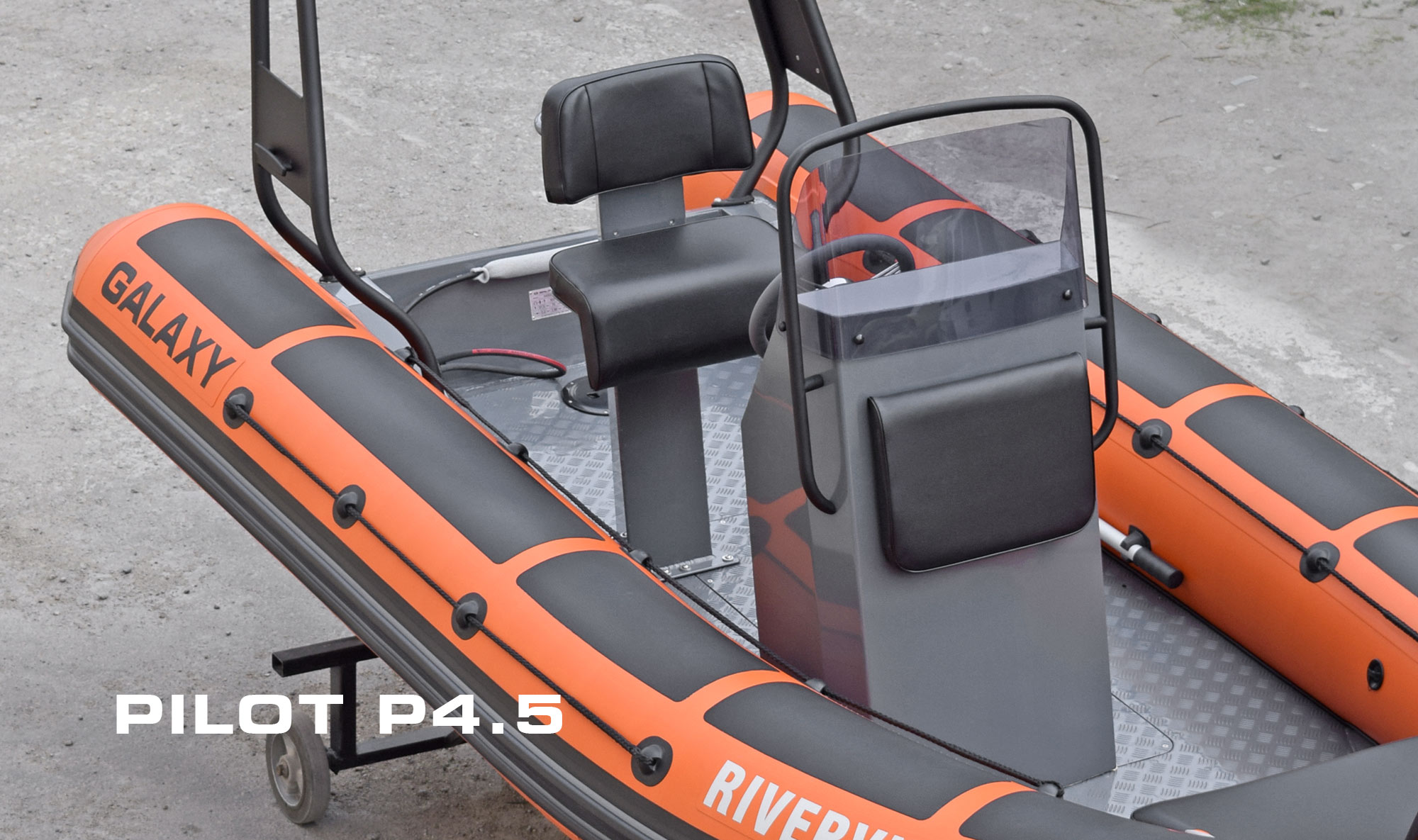

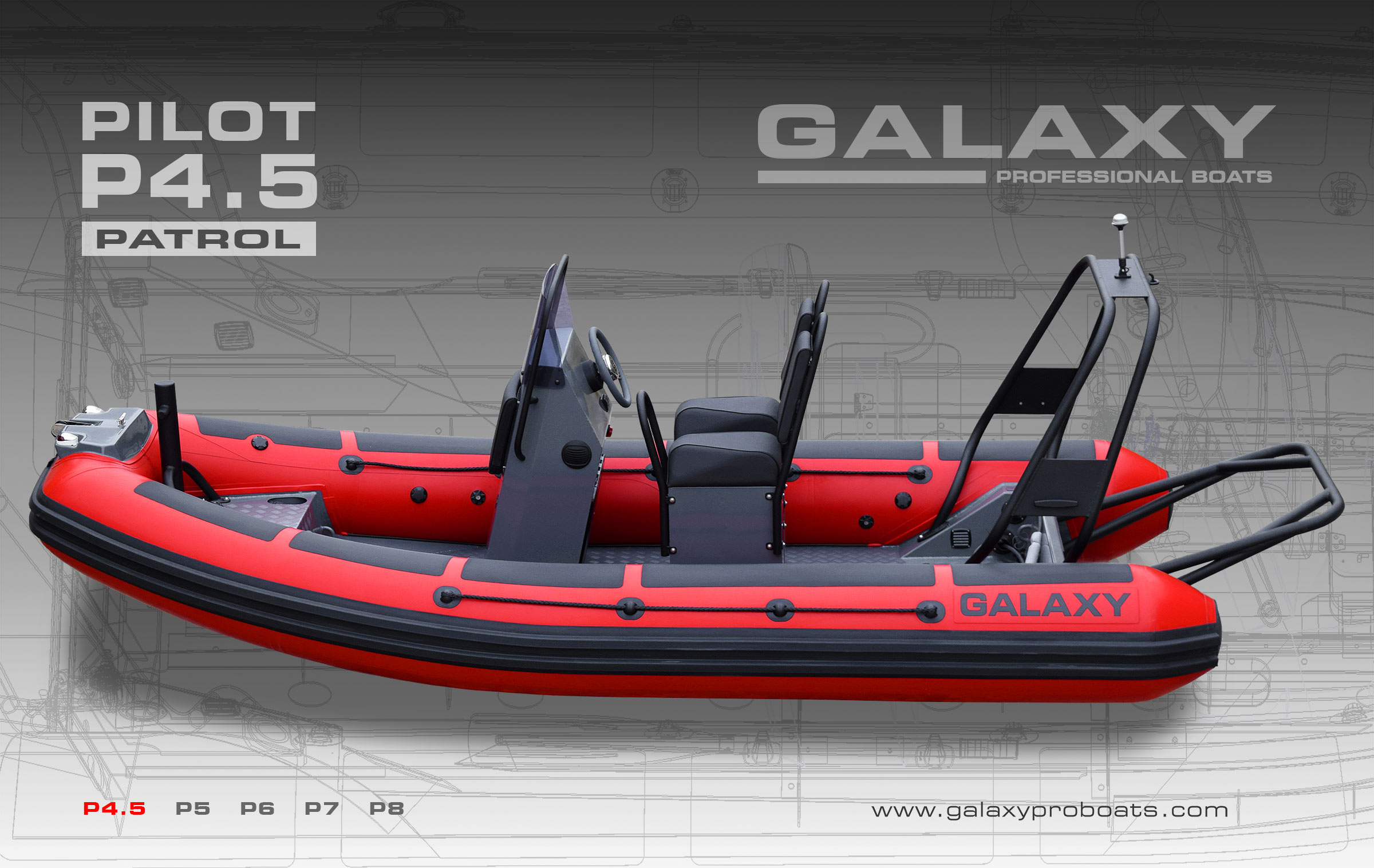

GALAXY PILOT – P4.5

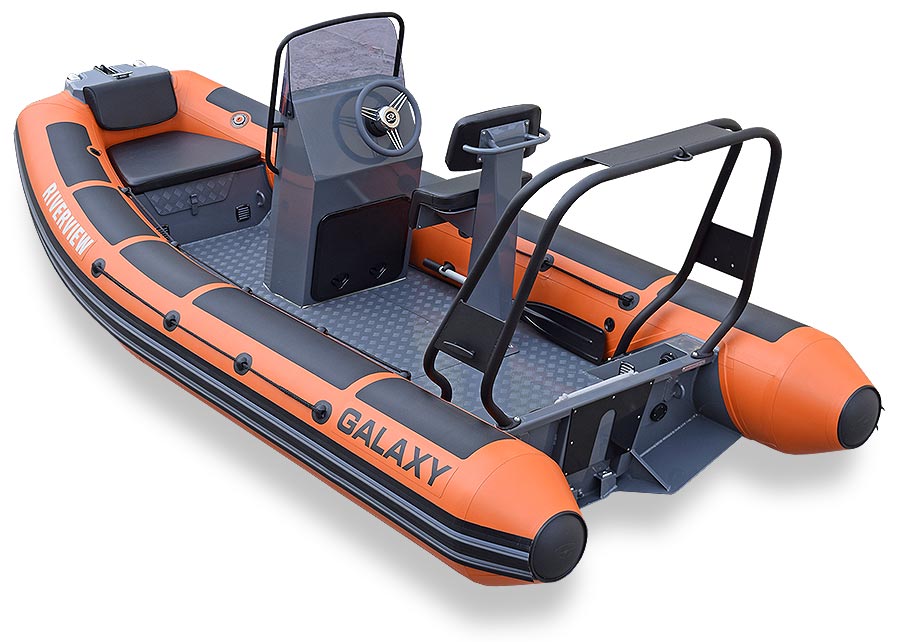

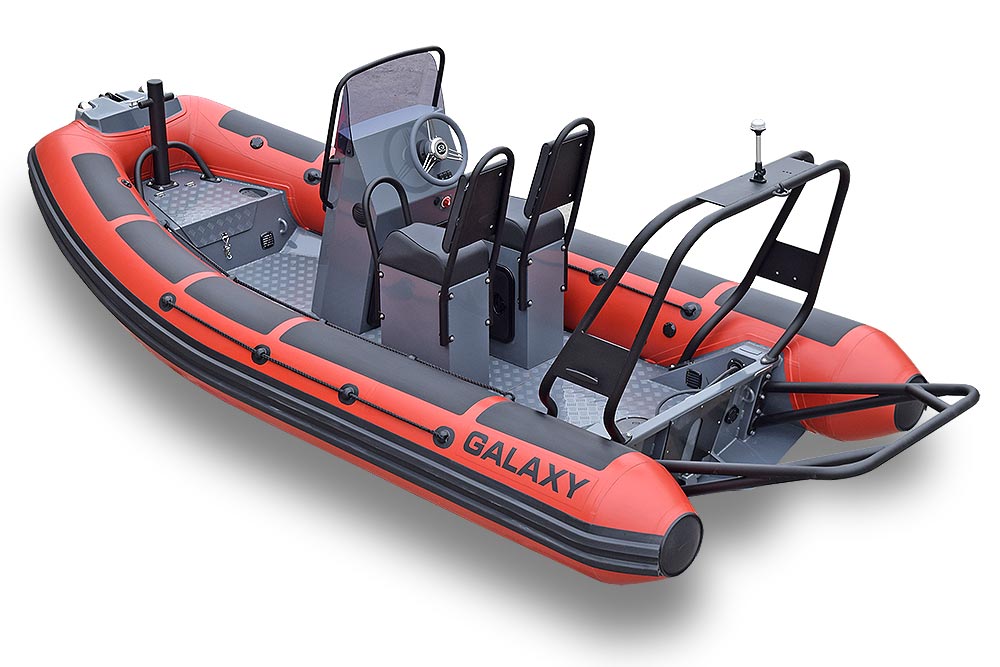

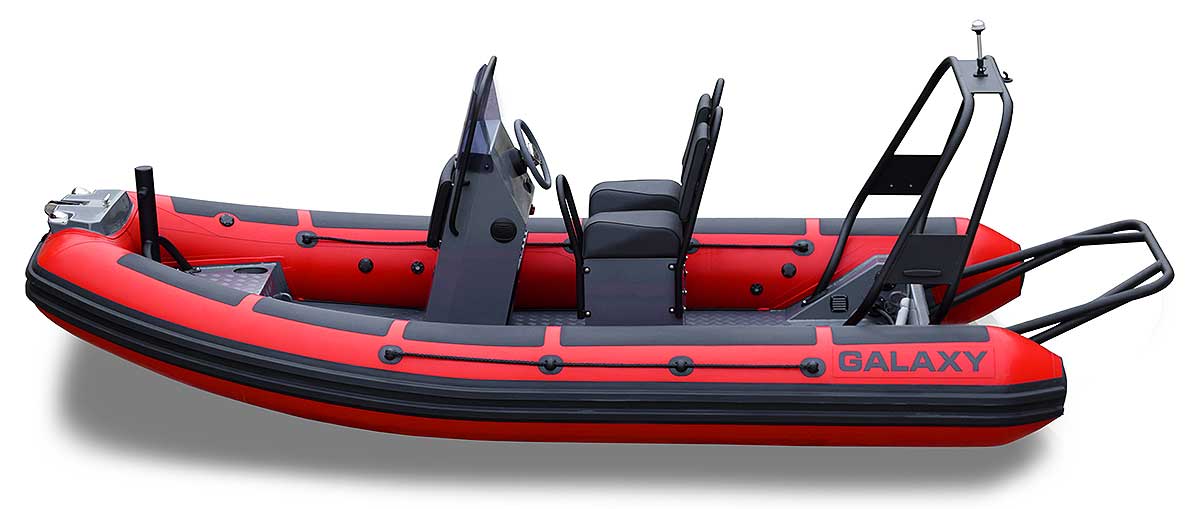

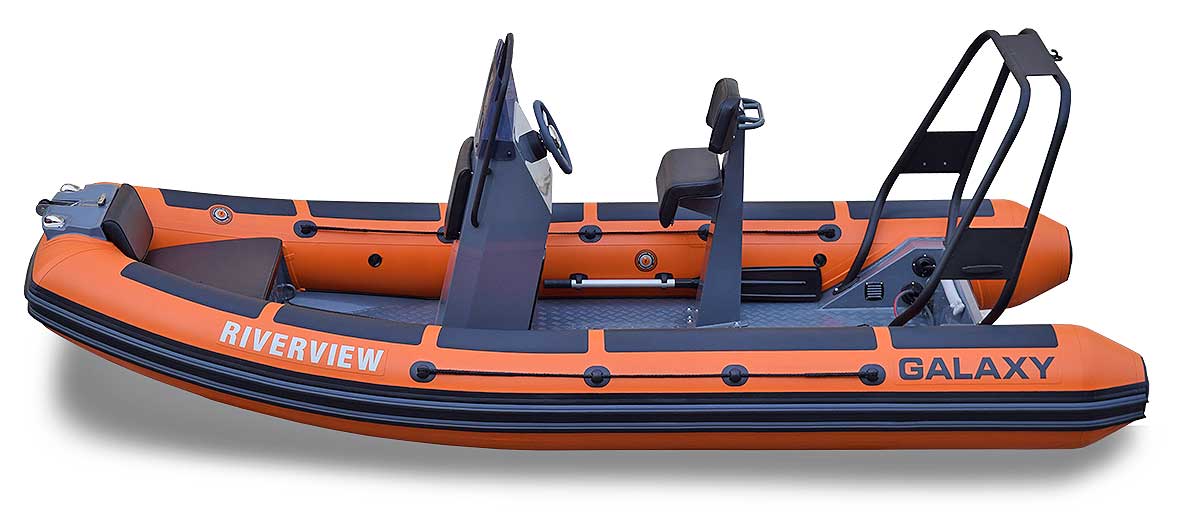

DESCRIPTION OF THE BOAT
The boat is designed for patrol duties, law enforcement tasks, and search and rescue operations. It is also suitable for commercial use on inland and coastal waters.
Its lightweight construction allows for easy transport and quick deployment. This makes the Pilot P4.5 ideal for operations that require speed and flexibility.
The welded aluminum hull features a durable powder-coated finish and a reinforced keel guard. This construction ensures long service life and reliability.

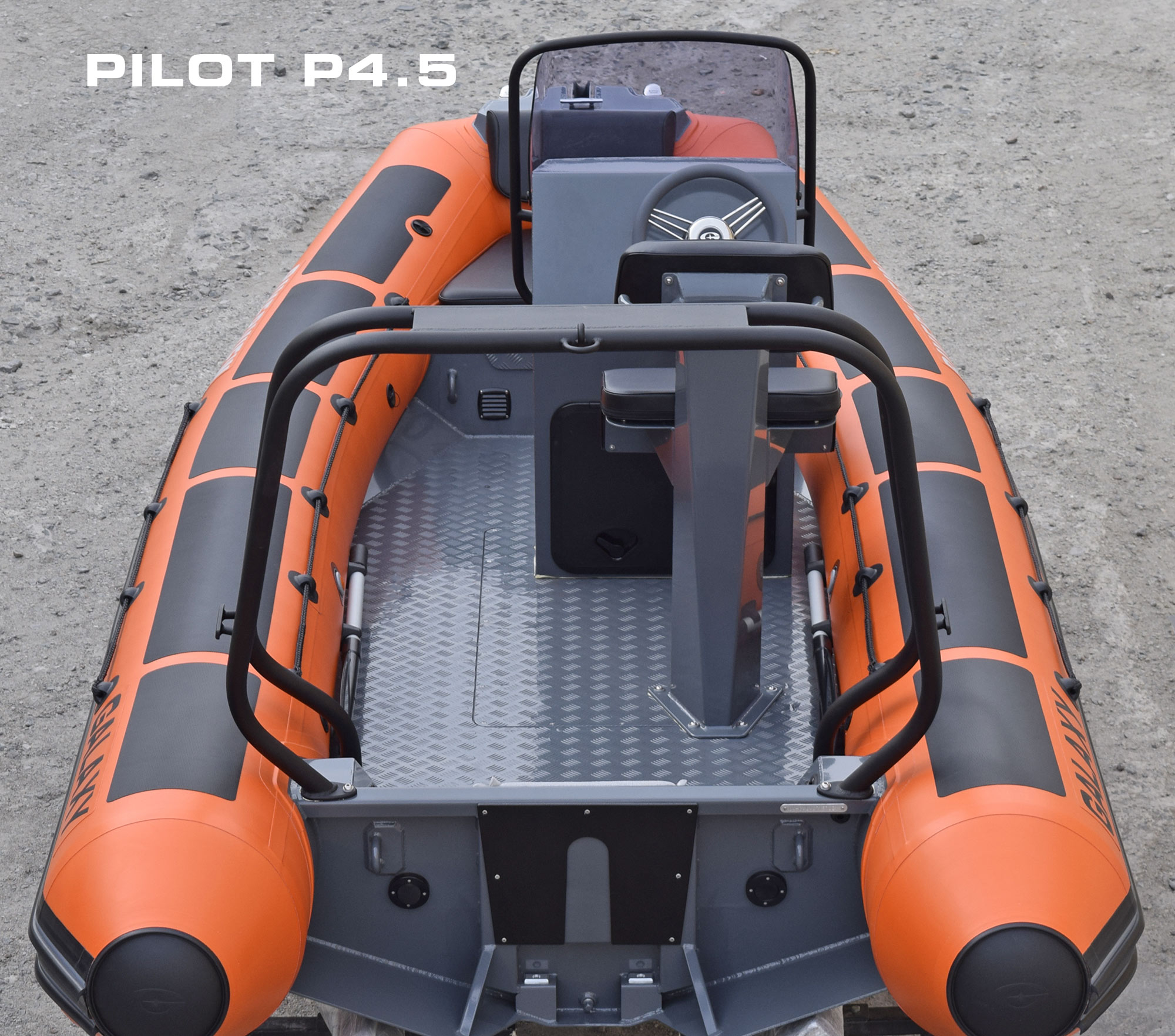

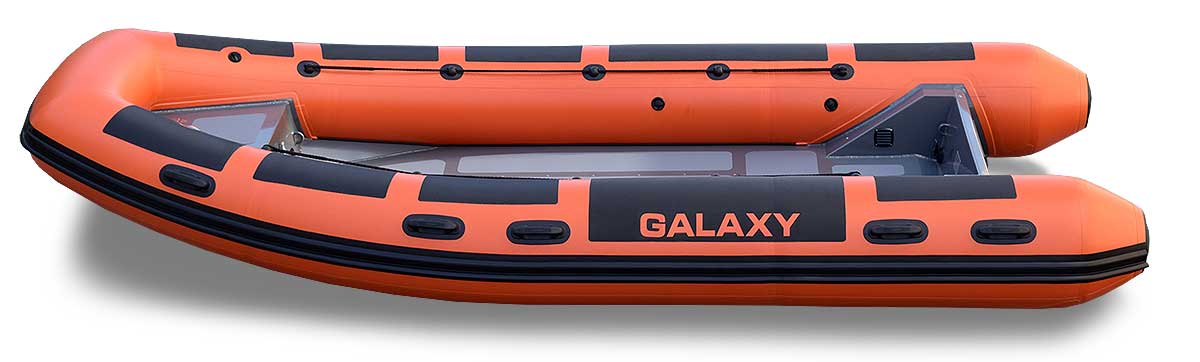

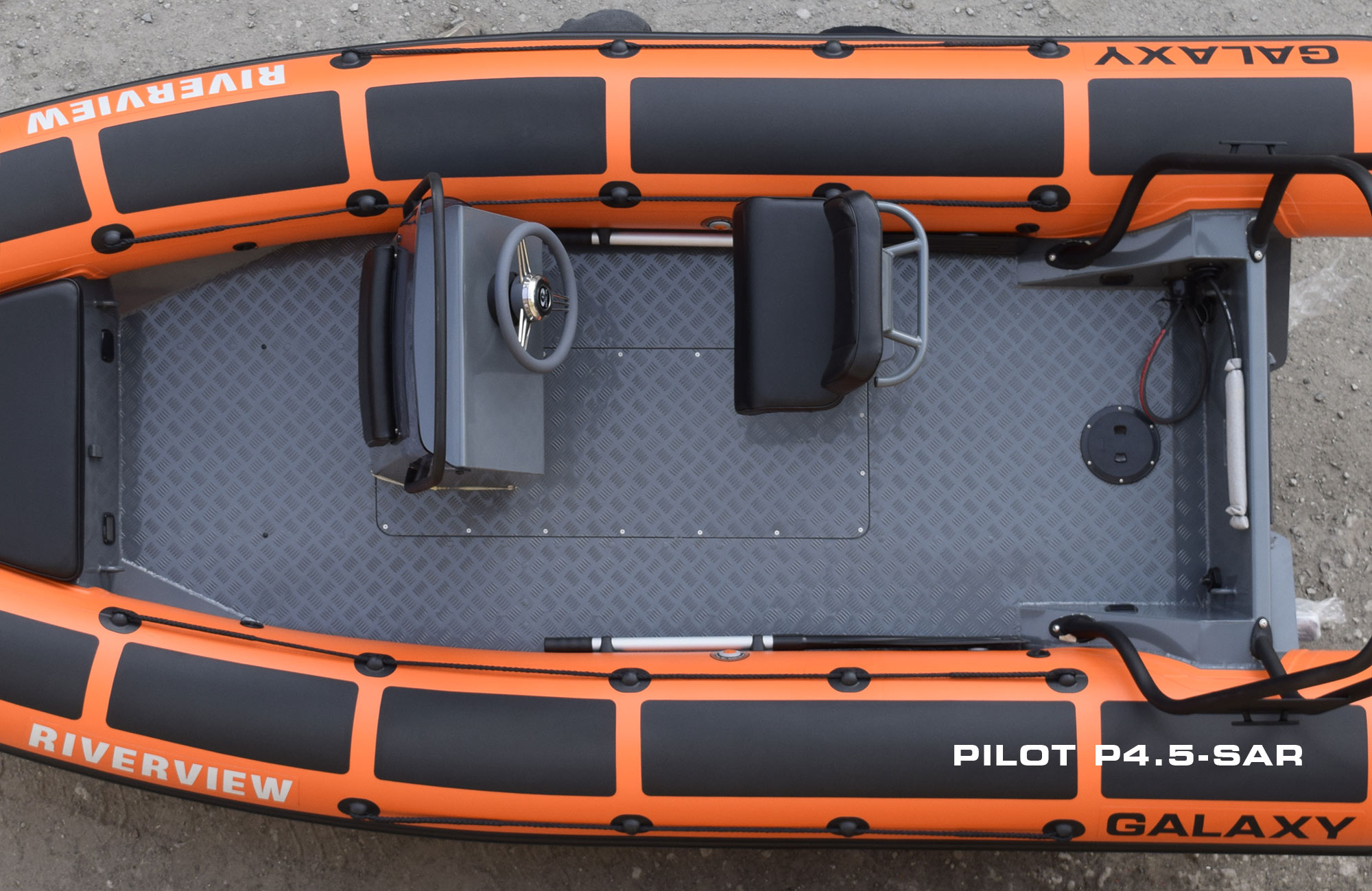

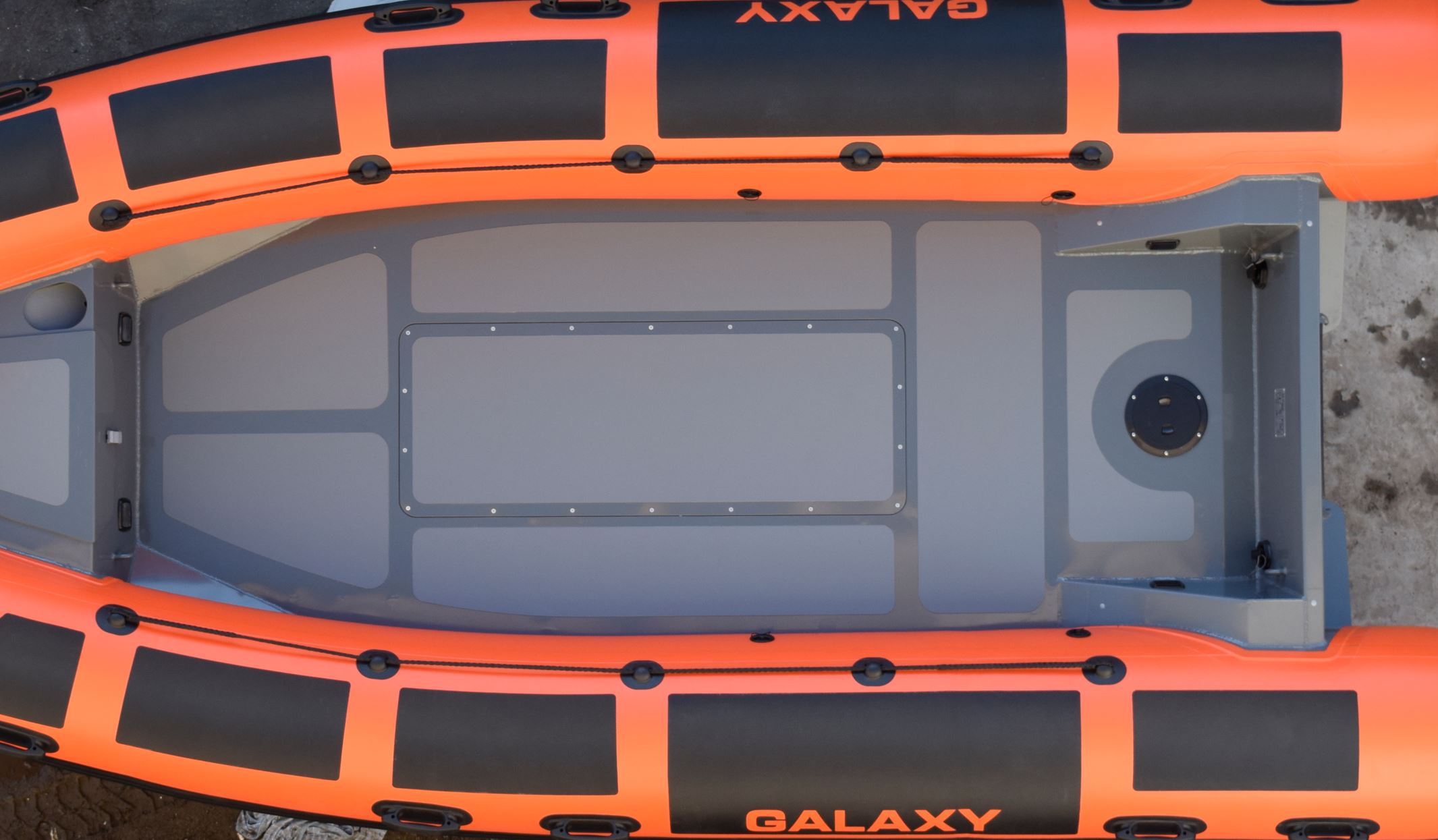

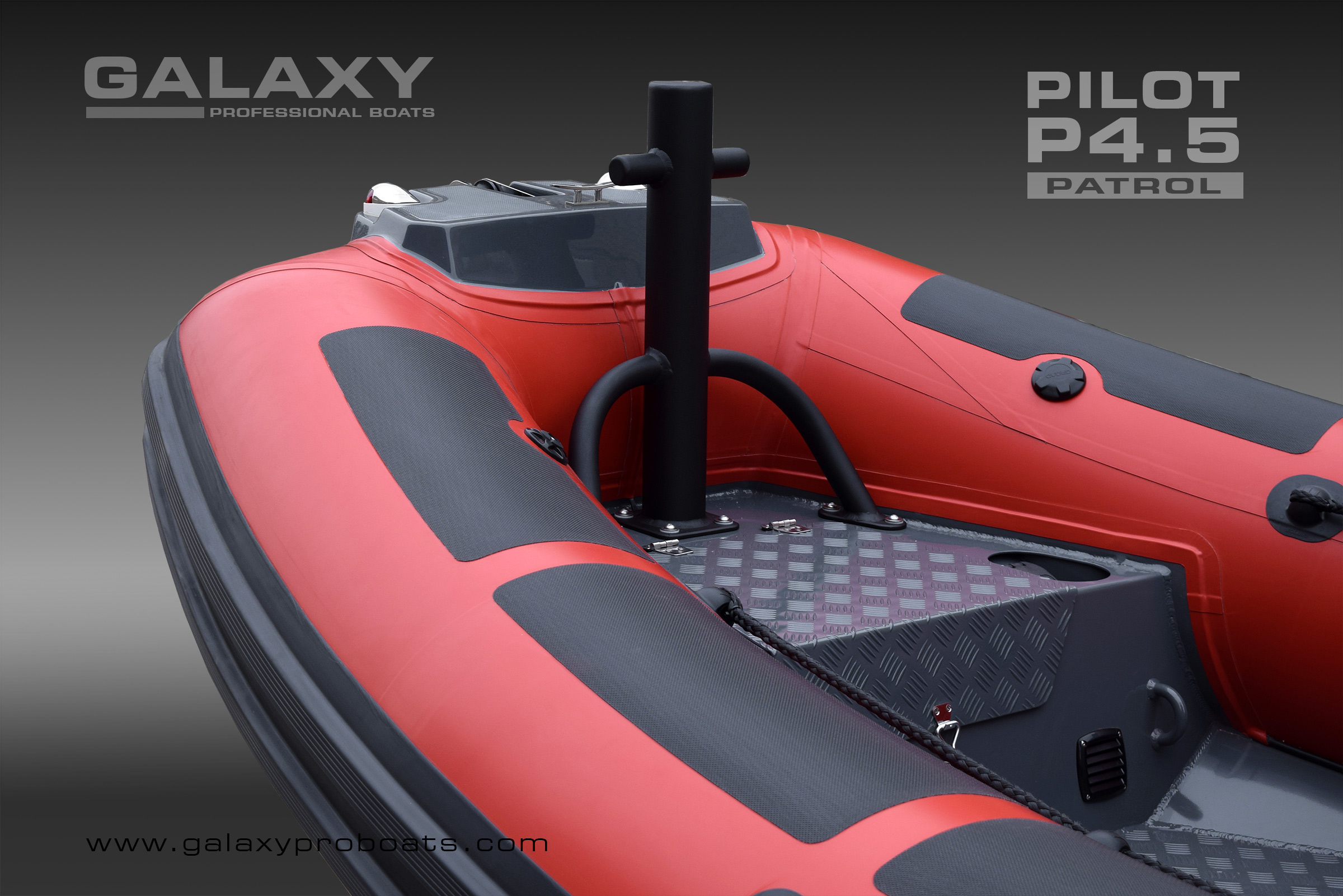

Standard equipment includes PRO decking with an embossed anti-skid surface. GALA-TABS hull extensions improve handling and performance. Commercial-grade inflatable tubes are available in VALMEX, HYPALON, or TPU materials.
Whether used for patrol, rescue, or professional marine work, the Pilot P4.5 delivers dependable performance in demanding conditions.
The GALAXY concept allows you to customize each boat to meet your specific requirements and tasks. This personalized approach ensures that every client receives a boat perfectly suited to their needs. A wide range of equipment is available for your requirements, along with custom engineering solutions tailored to your needs.
RESCUE
PROFESSIONAL GRADE BOAT
PATROL
DIVING
TOURISM
CARGO
SPECIFICATION
| Parameter | Value |
|---|---|
| Model | PILOT P4.5 |
| Total length | 450 cm / 14′ 9” |
| Cockpit length | 335 cm / 11′ 0” |
| Overall width | 215 cm / 7′ 1” |
| Cockpit width | 111 cm / 3′ 8” |
| Tube diameter max | 52 cm / 20,5” |
| Weight of the vessel | 280 kg / 616 lbs |
| Cargo carrying capacity | 800 kg / 1760 lbs |
| Passenger capacity | 7 |
| Number of compartments in tubes | 5 |
| Recommended engine power | 50 HP / 36,8 kW |
| Maximum engine power | 70 HP / 51,5 kW |
| Maximum motor weight | 130 kg / 286 lbs |
| Motor leg length | 20″ |
| Fuel tank capacity | 83 L |
| Roughness on the trine / middle | 23° / 28° |
| Material of tubes | HYPALON / PVC / TPU |
| Hull material | Aluminum hull RIB |
| Aluminum sheet thickness (side / bottom) | 4 |
| Boat design category | C |
Specification
| Hull length | 4.50 m |
| Beam | 2.15 m |
| Draft | - |
| Transform height | - |
| Hull material | Aluminum hull RIB |
| Hull thickness | 4 mm |
| Boat weight | 280 kg |
| Max weight capacity | 800 kg |
| Engine | 70 hp |
| Fuel tanks | 83 L |
| Livewell | - |
| Persons | 7 |
| Road storage | - |
